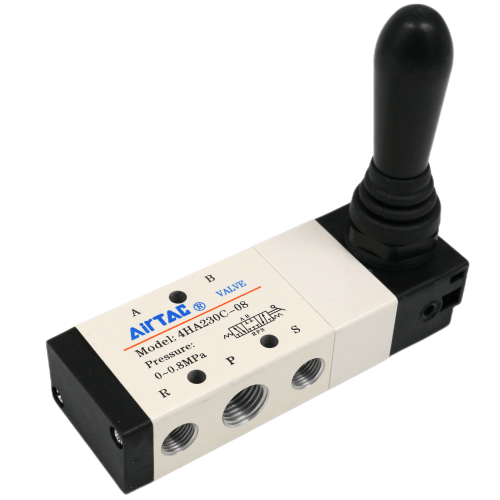

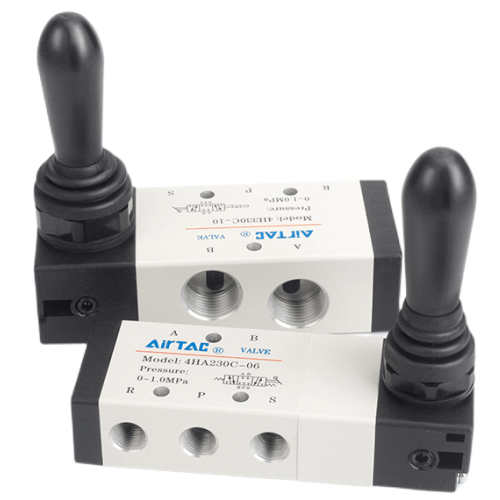

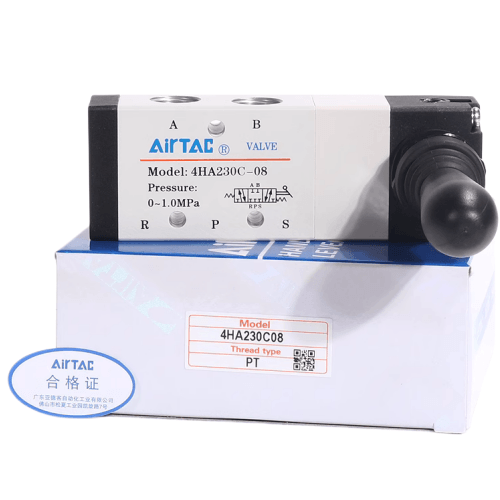

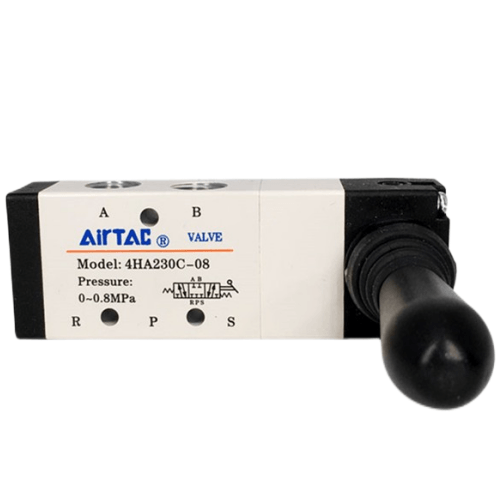

Airtac 4HA Manual Valve 4HA21006
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA21006 Manual Valve Specifications
- Model: 4HA21006
- Type: 2-position manual lever operated directional valve
- Port configuration: 3/2-way (3 ports, 2 positions)
- Port size: PT1/4 (G1/4 optional)
- Thread standard: BSPP (parallel threads)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Max flow rate: 750 L/min (Cv=1.3)
- Actuation force: ≤25 N (lever operation)
- Body material: Aluminum alloy (anodized surface)
- Seal material: NBR (Nitrile rubber) standard, optional FKM/Viton
- Temperature range: -5℃ to 80℃ (NBR seals)
- Weight: 320g ±5% (including accessories)
- Dimensions: 56mm(L) × 40mm(W) × 82mm(H)
- Mounting: Direct piping or subplate (ISO 15407-1 compliant)
- Port thread depth: 12mm engagement length
Robust manual override valve with positive detent mechanism, featuring a corrosion-resistant aluminum body and ergonomic lever design. The spring return function ensures automatic position reset. Designed for systems requiring manual intervention without electrical power. Includes built-in silencer for exhaust air noise reduction (73 dB(A) max).
- Emergency override in automated production lines
- Pneumatic system maintenance and troubleshooting
- Manual control of clamping fixtures in CNC machinery
- Safety lockout systems in material handling equipment
- Educational training setups for pneumatic circuits
Installation note:
Ensure proper alignment of flow direction arrows. Apply 56-74 N·m torque
for port connections. Lubricate seals with ISO VG32 hydraulic oil if stored
over 12 months before use.
- Compressed air (ISO 8573-1:2010 Class 3.4.2)
- Inert gases (N2, CO2)
- Not suitable for oxygen systems or aggressive chemicals
| Property | Property Value |
|---|---|
| sku | 4HA21006 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
