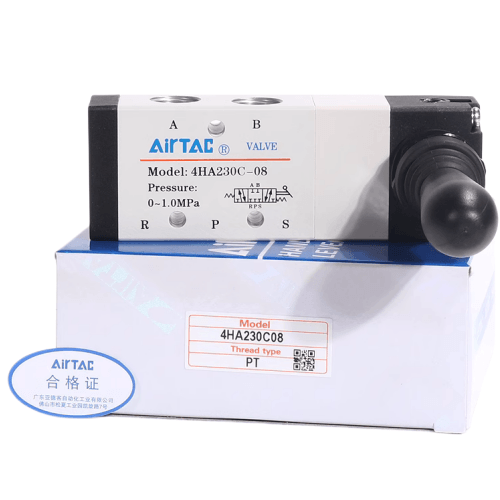

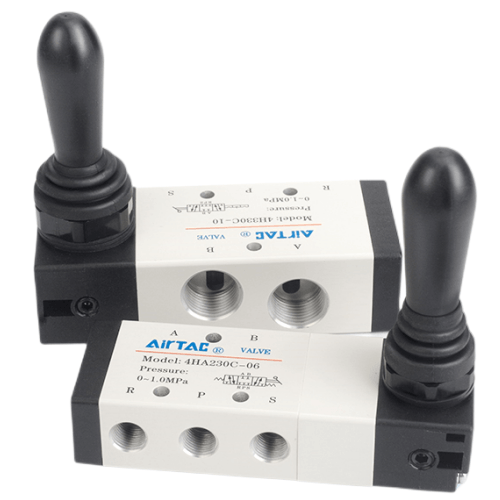

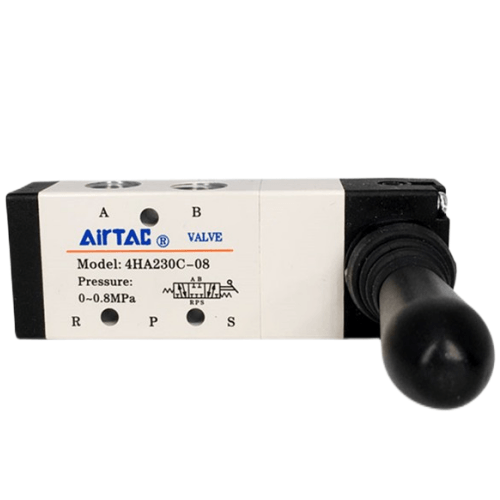

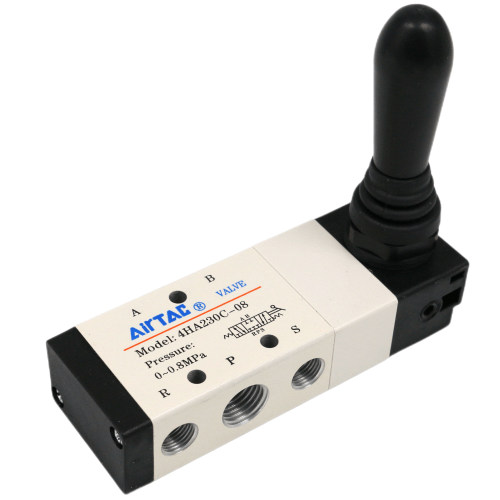

Airtac 4HA Manual Valve 4HA21008
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA21008 Manual Valve Technical Details
- Model: 4HA21008
- Type: 3-position (3/3-way) manual lever-operated valve
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Temperature range: -5℃ to 80℃
- Seal material: Nitrile Butadiene Rubber (NBR)
- Body material: Aluminum alloy with anodized finish
- Actuation force: ≤3.5N
- Mounting style: Sub-base or direct piping
- Weight: 250g ±5%
- Dimensions: 50mm(L) × 30mm(W) × 45mm(H)
- Port thread depth: 10mm (minimum engagement)
- Leakage: <0.1 mL/min under 0.5MPa
Industrial-grade manual override valve featuring center-block functionality for precise pneumatic circuit control. The ergonomic lever design allows single-finger operation with tactile position feedback. Includes built-in locking mechanism in neutral position to prevent accidental actuation. Compatible with ISO 15407-1 standard pneumatic systems.
- Emergency override in automated production lines
- Maintenance bypass for servo-controlled actuators
- Prototype pneumatic system debugging
- Educational training equipment for fluid power
- Mobile hydraulic/pneumatic hybrid systems
Installation guidelines:
Mount in accessible locations with lever movement clearance ≥60mm.
Apply thread sealant (PTFE tape recommended) on port connections.
Perform monthly lever pivot lubrication using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 4HA21008 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
