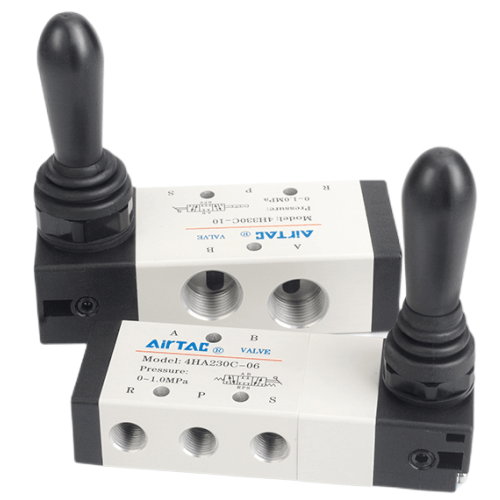

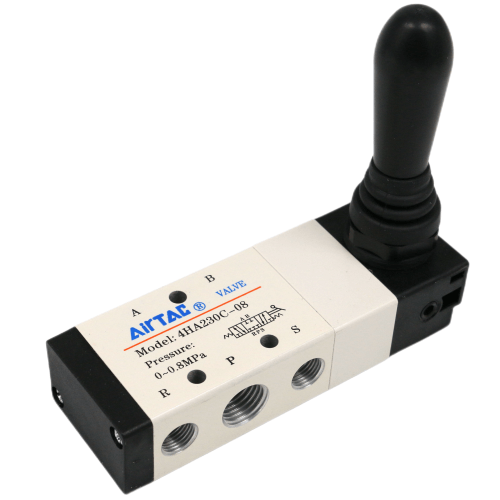

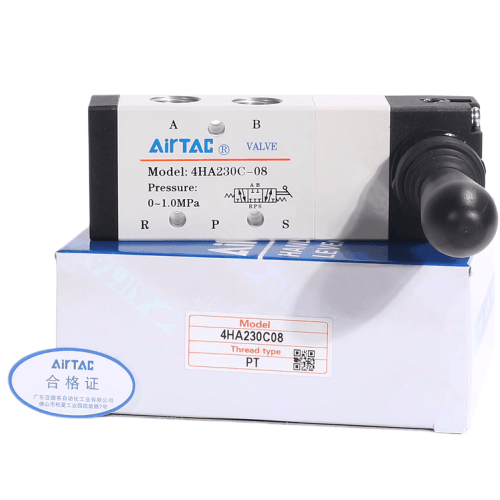

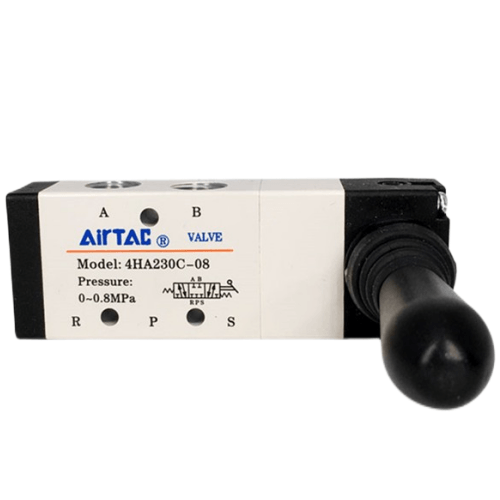

Airtac 4HA Manual Valve 4HA230C08
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA230C08 Manual Rotary Valve Technical Details
- Model: 4HA230C08
- Type: 3-position (P-R-A) manual detented rotary valve
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Flow capacity: 1,200 L/min (ANR)
- Actuation torque: ≤1.5 N·m
- Weight: 0.85 kg ±3%
- Dimensions: 80mm(L) × 68mm(W) × 92mm(H)
- Body material: Die-cast aluminum alloy (surface anodized)
- Spindle seal: HNBR with PTFE wear ring
- Port thread depth: 13mm (full engagement recommended)
- Temperature range: -10℃ to 80℃ (with silicone seals optional for -20℃)
- Mounting options: Panel mount (front flange) with M5 mounting holes
- Position indication: Dual-sided arrow markers with tactile feedback
Heavy-duty manual directional control valve featuring positive detent positioning and 360° rotatable knob. The hardened stainless steel spindle and multi-lip seals ensure leak-free operation under cyclic stress. Designed for systems requiring manual override or frequent flow path changes.
- Pneumatic press emergency bypass control
- Material handling system diverter valves
- Foundry equipment manual override stations
- Agricultural machinery hydraulic pilot controls
- Production line maintenance isolation points
Operation guidance:
Apply food-grade grease (ISO VG 32 compatible) quarterly to spindle tip.
Avoid lateral force on control knob - maximum side load 15N.
For vertical installation, ensure exhaust port faces downward.
| Property | Property Value |
|---|---|
| sku | 4HA230C08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
