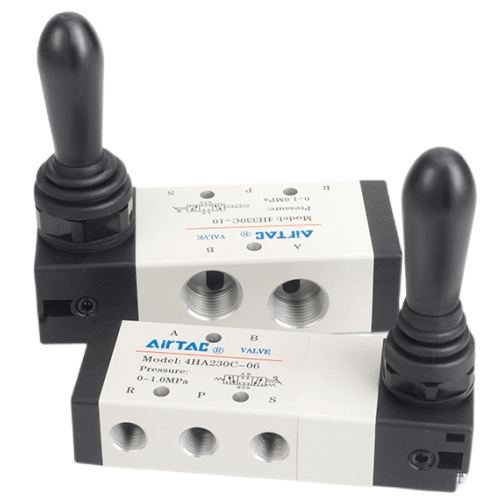

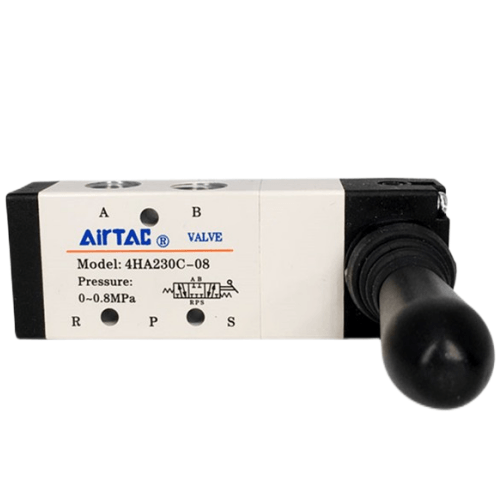

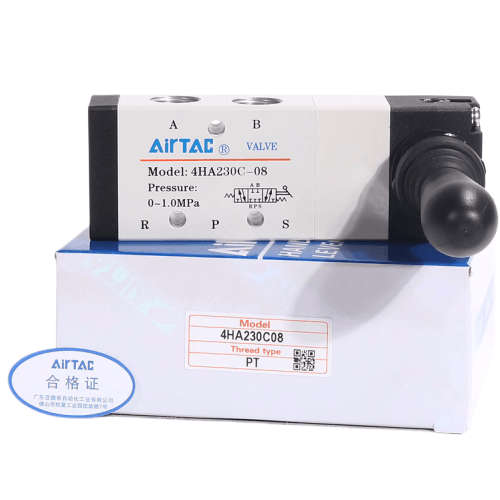

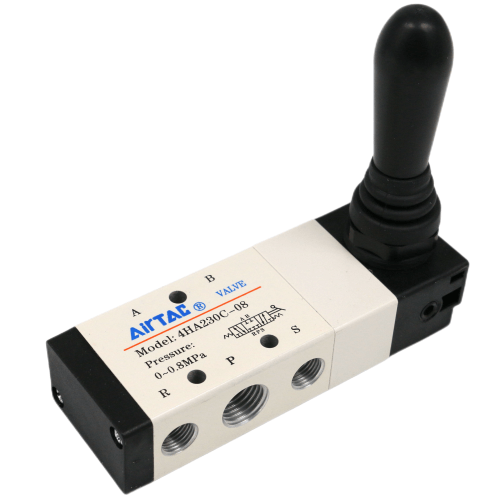

Airtac 4HA Manual Valve 4HA31008
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA31008 Manual Valve Technical Details
- Model: 4HA31008 (4HA Series)
- Type: 3-position manual selector valve with detent mechanism
- Port configuration: 3/2-way (3 ports, 2 positions)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤15 N (rotary lever operation)
- Valve body material: Aluminum alloy with hard anodizing
- Seal material: NBR (Nitrile) standard, optional FKM/Viton
- Temperature range: -20℃ to 80℃ (NBR seals)
- Weight: 220g ±5% (without accessories)
- Dimensions: 60mm(L) × 40mm(W) × 35mm(H)
- Mounting: Panel mount with M4 screw holes (4x)
- Pressure resistance: 1.2 MPa burst pressure
Mechanical manual override valve featuring positive center positioning and tactile feedback. The chrome-plated lever handle provides 180° rotation with 45° detent increments. Designed for systems requiring manual intervention without electrical control. Includes dust-resistant O-ring seals around the shaft.
- Emergency stop override in production line pneumatics
- Manual mode selection in packaging machinery
- Training simulators for industrial automation
- Maintenance bypass in HVAC control systems
- Mobile equipment requiring non-powered operation
Installation guidelines:
Apply thread sealant to port connections (PT threads). Lubricate shaft monthly with ISO VG32 turbine oil.
For horizontal mounting, ensure lever moves freely without obstructions. Max torque during installation: 3.5 N·m.
| Property | Property Value |
|---|---|
| sku | 4HA31008 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
