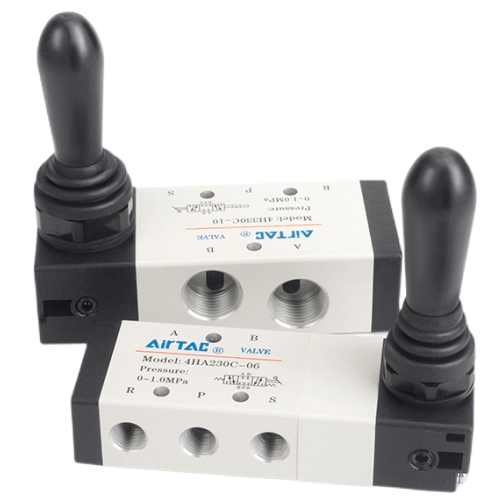

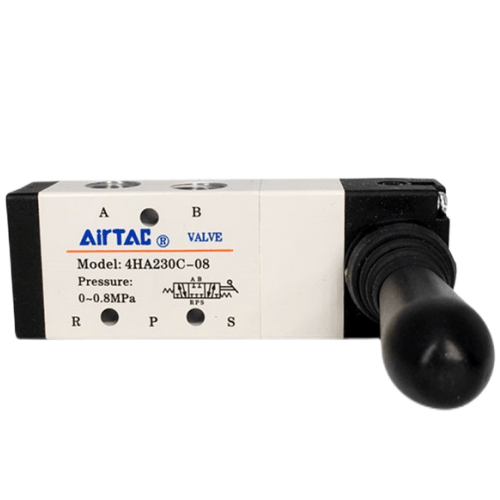

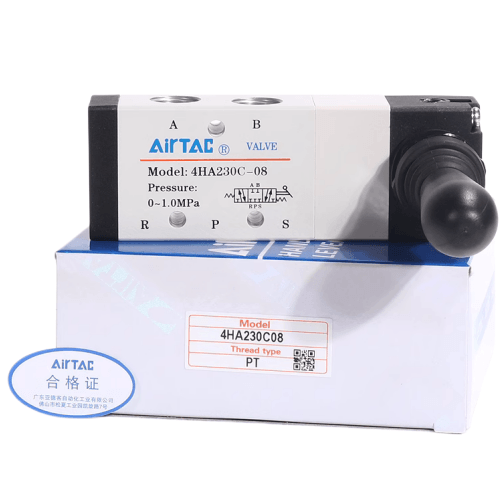

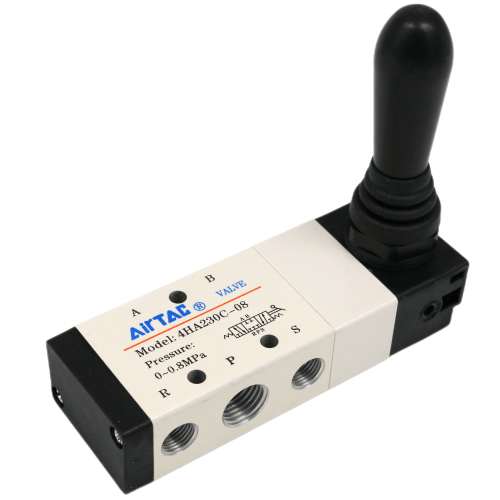

Airtac 4HA Manual Valve 4HA330C08
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA330C08 Manual Valve Technical Details
- Model: 4HA330C08
- Type: 3-position 4-way manual directional valve
- Operation method: Mechanical lever actuation
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Port size: 1/4" NPT (G1/8 optional)
- Maximum operating pressure: 10 bar (145 psi)
- Minimum operating pressure: 0.2 bar (2.9 psi)
- Flow capacity: 750 l/min (Cv=1.2)
- Temperature range: -5℃ to 80℃
- Seal material: Nitrile (NBR) with metal body
- Mounting style: Sub-base or panel mount
- Weight: 480g ±5%
- Dimensions: 56mm(W) × 56mm(H) × 95mm(L)
- Protection rating: IP54 (standard), IP65 with optional cover
- Manual override force: ≤25N
Industrial-grade manual valve with positive center position, designed for precise directional control in pneumatic systems. Features hardened steel lever mechanism with dust-resistant bushings and corrosion-resistant zinc-nickel plating. The T-shaped handle provides tactile feedback during operation. Compatible with ISO 15407-1 standard sub-bases.
- Emergency stop circuits in production lines
- Manual override for automated machinery
- Material handling equipment control stations
- Pneumatic press safety systems
- Educational training rigs for fluid power
Installation guidelines:
Mount in accessible locations with lever movement clearance ≥120° arc.
Use thread sealant on NPT ports. Lubricate pivot point annually with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 4HA330C08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
