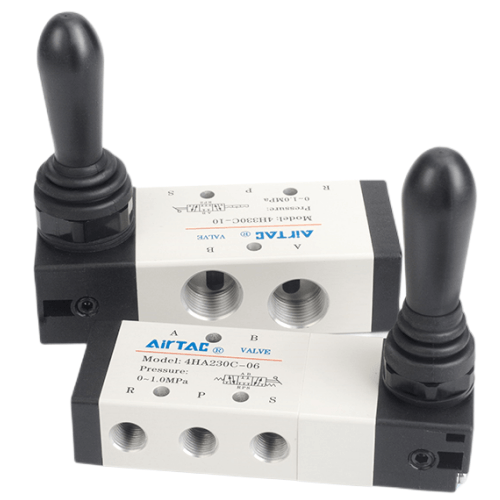

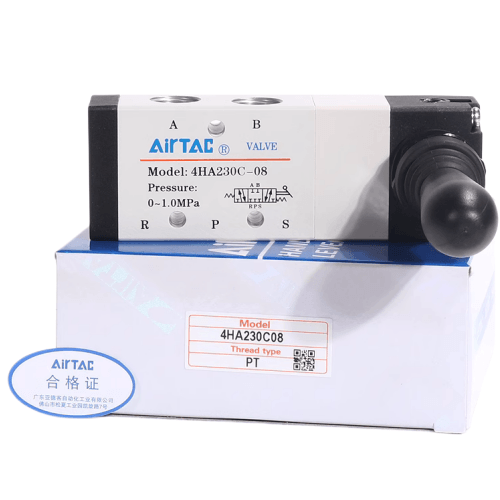

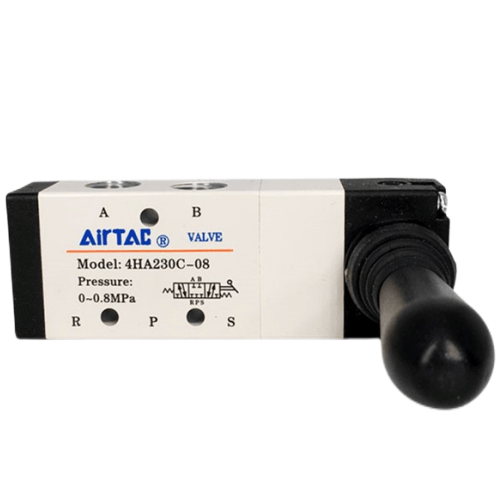

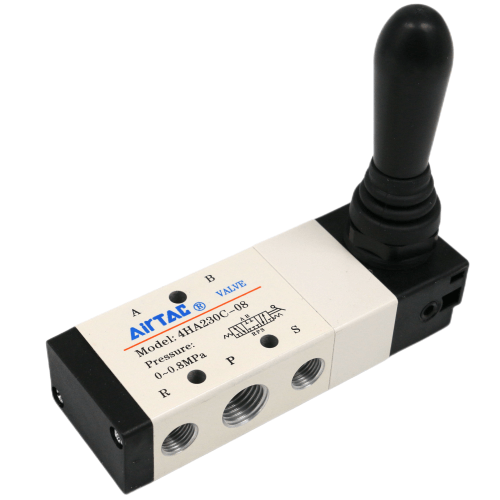

Airtac 4HA Manual Valve 4HA330C10
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA330C10 Manual Valve Technical Details
- Model: 4HA330C10
- Type: 3-position (center closed), 4-way manual valve
- Operation method: Mechanical lever actuation
- Port configuration: P (pressure), A/B (actuator ports), R (exhaust)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 800 L/min (ANR)
- Body material: Aluminum alloy (hard anodized)
- Seal material: NBR (nitrile) standard, optional FKM/Viton
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Weight: 450g ±5% (without accessories)
- Dimensions: 60mm(L) × 40mm(W) × 30mm(H)
- Mounting style: Sub-base or direct piping
- Manual override force: ≤3.5N
- Lever rotation angle: 90°±5°
Industrial-grade manual override valve with positive center position lock. Features wear-resistant pivot mechanism and dual O-ring sealing for leak-free operation. The ergonomic lever includes tactile position feedback with clear "click" detents. Requires 5μm filtered air (ISO 8573-1:2010 class 4.4.3) for optimal service life.
- Emergency override in automated production lines
- Pneumatic system debugging/maintenance stations
- Actuator manual positioning in material handling systems
- Safety lockout during equipment servicing
- Educational pneumatic training rigs
Installation note:
Mount in accessible locations with ≥15mm clearance around lever. Lubricate pivot point with ISO VG32 turbine oil annually.
Use thread sealant on ports when direct piping. Center position provides full system pressure lock.
| Property | Property Value |
|---|---|
| sku | 4HA330C10 |
| Position | 5-port 3-position |
| Port Size | PT3/8 |
