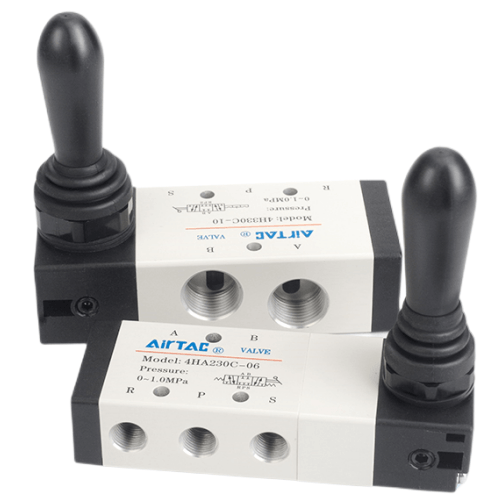

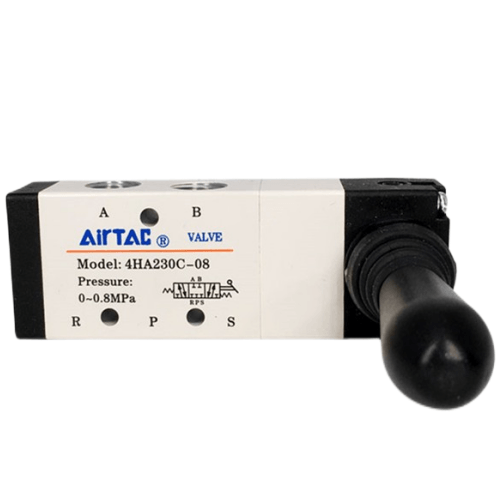

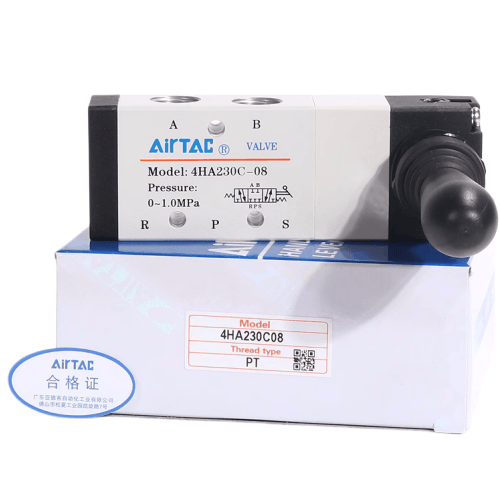

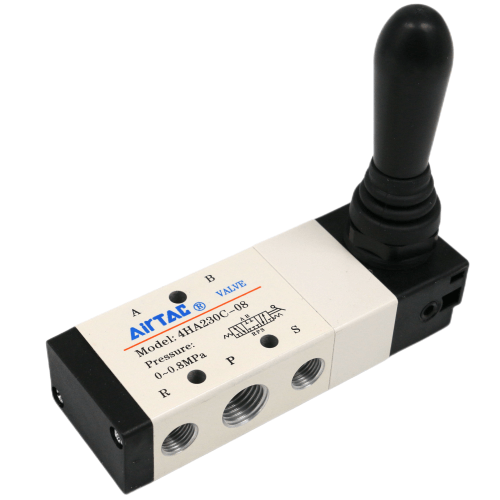

Airtac 4HA Manual Valve 4HA330E08
1. Manual operation ensures smooth actuation with precise and reliable positioning.
2. Spool-type structure delivers superior sealing performance, featuring compact dimensions, lightweight design, and tool-free assembly/disassembly capabilities.
3. Precision-engineered internal bore with advanced surface treatment minimizes friction resistance and extends service life.
4. Maintenance-free operation without lubrication requirements.
5. Panel-mount compatible design for simplified installation, offering flexible configuration to meet diverse application demands.
Category: Manual Valves | Brand: AIRTAC | Series: 4HA （Note: Technical terms optimized for pneumatic components industry standards, including "spool-type structure" for valve mechanism accuracy, "precision-engineered internal bore" reflecting manufacturing quality, and "panel-mount compatible" as standard installation terminology. HTML formatting preserved as requested.）
AirTAC 4HA330E08 Manual Valve Specifications
- Model: 4HA330E08
- Type: 3-position, 4-way manual lever operated directional valve
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Max flow rate: 850 L/min
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 80℃ (with silicone seals optional up to 120℃)
- Weight: 0.52 kg (1.15 lbs)
- Dimensions: 80mm(L) × 30mm(W) × 30mm(H)
- Mounting style: Sub-base or manifold mounting
- Center position flow pattern: Closed center/Pressure retained/Exhaust blocked
- Operating force: ≤50N lever effort
- Port thread depth: 12mm
Industrial-grade manual valve featuring positive detent positioning and wear-resistant bushings for precise directional control. The T-handle design allows gloved operation with tactile feedback, while the hard-coat anodized surface resists chemical corrosion. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 air quality standards.
- Emergency stop circuits in production line machinery
- Pneumatic system isolation during maintenance
- Manual override for automated systems
- Material handling equipment control stations
- Hydraulic system pilot controls (with compatible fluids)
Installation note:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
For horizontal mounting, ensure exhaust ports face downward to prevent
moisture accumulation. Maximum allowable side load on lever: 15N.
| Property | Property Value |
|---|---|
| sku | 4HA330E08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
