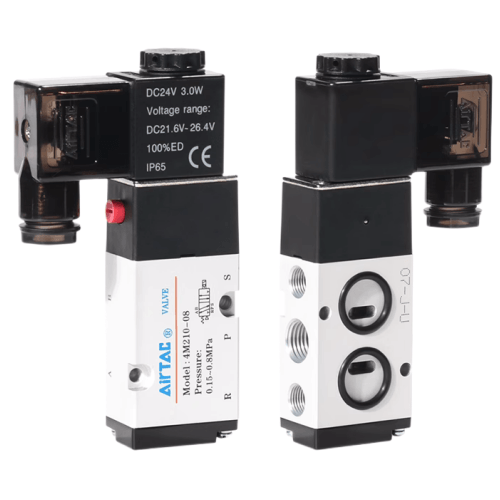

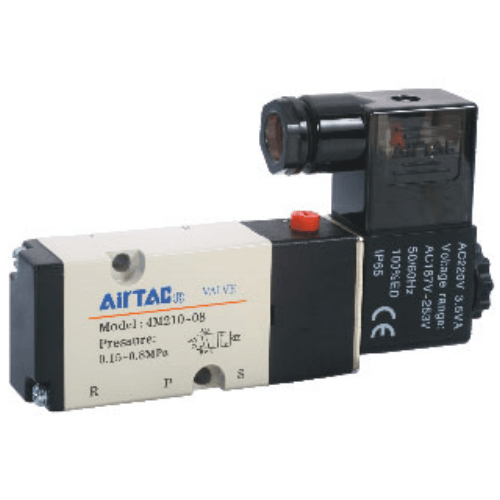

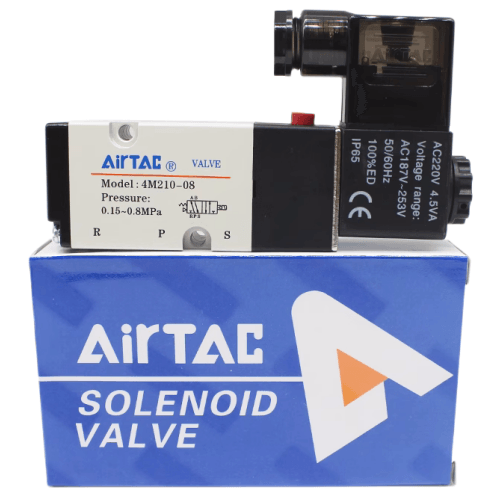

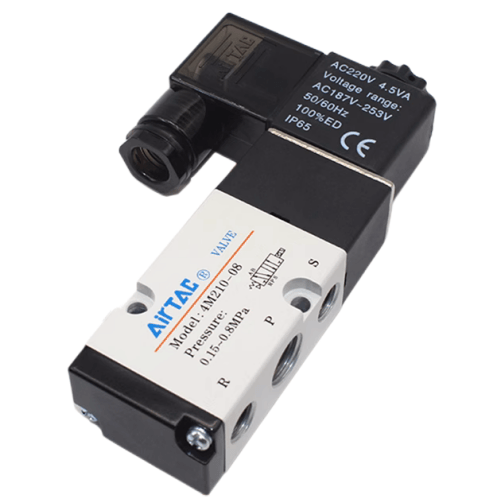

Airtac 4M Solenoid Valve 4M22006B
2、Sliding spool structure with excellent sealing performance and rapid response characteristics;

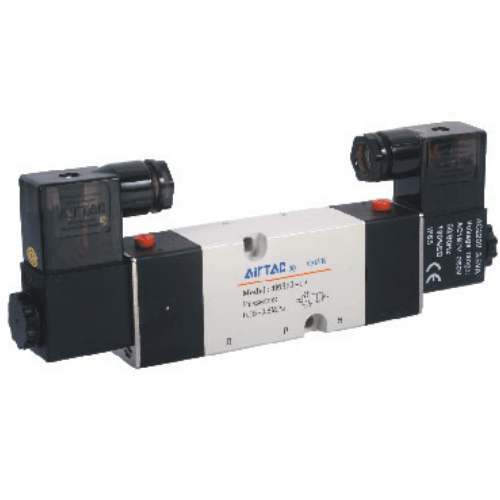

3、Dual-coil bistable function for position memory retention in 4M series 5/2-way valves;
4、Precision-bored cylinders with specialized surface treatment ensure low friction, minimum operating pressure (0.15MPa), and extended service life;
5、Maintenance-free operation requiring no lubrication;
6、Side port mounting configuration enables direct coupling with actuators;
7、Integrated manual override for simplified commissioning and maintenance;
8、Multiple standard voltage options available for global compatibility.
Category: Solenoid Valves, Brand: AIRTAC, Series: 4M
AirTAC 4M22006B Solenoid Valve Technical Details
- Model: 4M22006B
- Type: 5/2-way double pilot operated (monostable)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.1–0.9 MPa (14.5–130.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 320g ±5% (without connector)
- Dimensions: 52mm(L) × 38mm(W) × 78mm(H)
- Valve body material: Reinforced PBT resin
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 80℃ (with intermittent 100℃ tolerance)
- Power consumption: 2.2W (DC), 3.5VA (AC)
- Flow capacity: CV 1.8 (Kv 1.56) at 0.5MPa
- Response time: ≤30ms (exhaust to actuation)
- Port thread depth: 10mm (minimum engagement)
- Protection rating: IP67 (dust/immersion protected)
High-flow directional control valve with dual pilot operation, featuring rapid cycling capability (up to 5Hz) and low hysteresis. The aluminum-coated solenoid coil ensures heat dissipation efficiency, while the manual override allows for system debugging without power. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Plastic injection molding machine clamp control
- Automated assembly line cylinder sequencing
- Textile machinery pneumatic logic systems
- Food processing vacuum/pressure switching
- Semiconductor wafer handling robotics
Installation guidelines:
Mount with M4 screws (max torque 1.2N·m). Maintain 15mm clearance
above exhaust ports. For horizontal mounting, use drip shield option
(accessory AS-4M-EXS). Lubricate every 2 million cycles under continuous operation.
| Property | Property Value |
|---|---|
| sku | 4M22006B |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
| Standard Voltage | DC24V |
