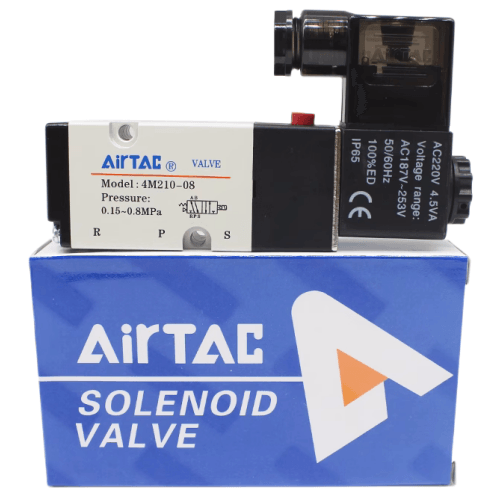

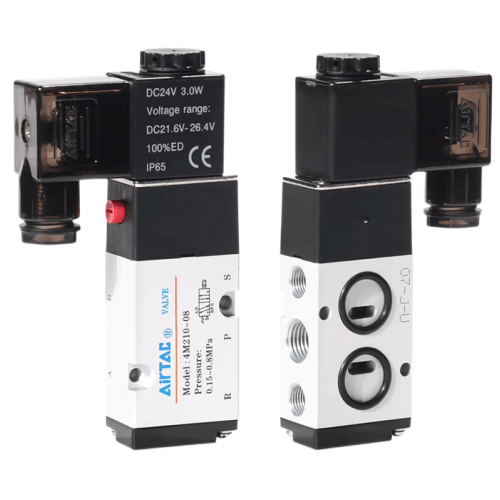

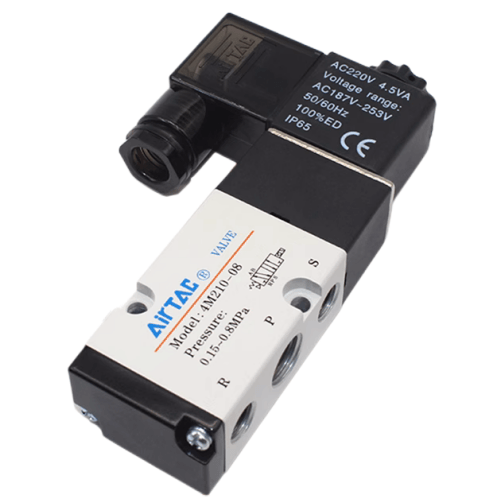

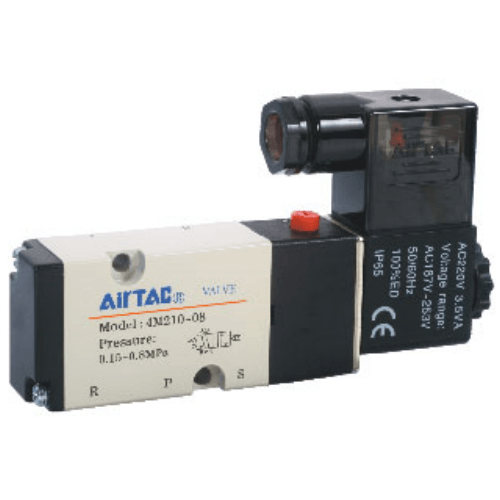

Airtac 4M Solenoid Valve 4M22006E
2、Sliding spool structure with excellent sealing performance and rapid response characteristics;
3、Dual-coil bistable function for position memory retention in 4M series 5/2-way valves;
4、Precision-bored cylinders with specialized surface treatment ensure low friction, minimum operating pressure (0.15MPa), and extended service life;
5、Maintenance-free operation requiring no lubrication;
6、Side port mounting configuration enables direct coupling with actuators;
7、Integrated manual override for simplified commissioning and maintenance;
8、Multiple standard voltage options available for global compatibility.
Category: Solenoid Valves, Brand: AIRTAC, Series: 4M
AirTAC 4M22006E Solenoid Valve Technical Details
- Model: 4M22006E
- Type: 5/2-way double solenoid operated (pilot-controlled)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–1.0 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Effective flow rate: 850 l/min (ANR)
- Flow coefficient (Cv): 1.6
- Response time: ≤15ms (excitation), ≤20ms (reset)
- Weight: 320g ±5% (excluding connectors)
- Dimensions: 56mm(L) × 50mm(W) × 45mm(H)
- Seal materials: NBR (standard), optional FKM/Viton® for high temp
- Fluid compatibility: Compressed air (lubricated/non-lubricated), inert gases
- Ambient temperature: -5℃ to 60℃ (NBR), -5℃ to 80℃ (FKM)
- Power consumption: 2.2W (DC), 3.5VA (AC)
- Protection class: IP67 (coil), IP40 (valve body)
- Port thread depth: 10mm (minimum engagement)
High-flow bistable solenoid valve with dual coil configuration for precise directional control in pneumatic circuits. Features dual manual override buttons, LED operation indicators, and surge protection circuitry. The aluminum alloy body with hard anodizing ensures corrosion resistance in humid environments. Requires 5μm filtered air with ≤5ppm oil content.
- Clamping/positioning mechanisms in CNC machinery
- Actuator control for automated assembly lines
- Pneumatic cylinder sequencing systems
- Textile machinery tension control
- Plastic injection molding ejectors
Installation protocol:
Mount in vibration-free environment using M5 mounting screws (torque ≤0.8N·m).
Maintain ≥20mm clearance from heat sources. Lubricate sliding parts with ISO VG32
pneumatic oil if using non-lubricated air. Perform functional test every 500k cycles.
Critical note:
Not compatible with flammable gases or vacuum systems. Always install downstream
pressure regulator. Coil replacement requires matching voltage code (stamped on DIN connector).
| Property | Property Value |
|---|---|
| sku | 4M22006E |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
| Standard Voltage | AC24V |
