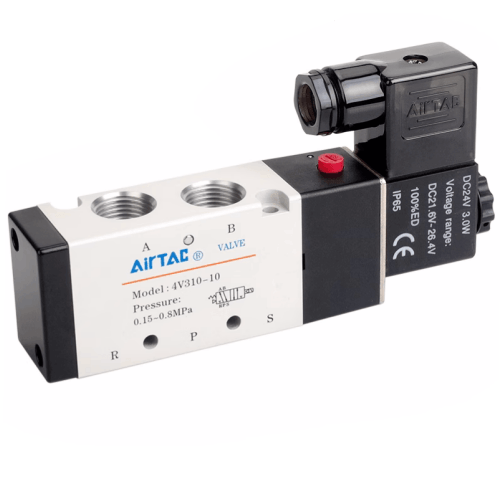

Airtac 4V300 Solenoid Valve 4V32008CI
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);

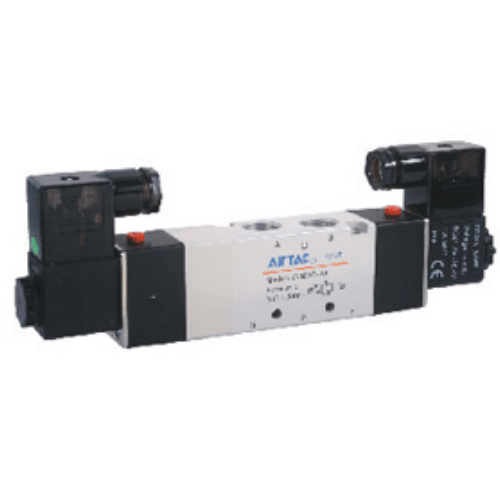

4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V32008CI Technical Details
- Model: 4V32008CI
- Type: 5/2-way single solenoid with spring return
- Port size: PT1/4 (G1/4 optional)
- Operation mode: Internal pilot operated
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 1200 NL/min (Cv=1.8)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.8W (DC), 4.5VA (AC)
- Response time: ≤15ms (excitation), ≤20ms (reset)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 60℃ (fluid), -20℃ to 60℃ (ambient)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Weight: 420g ±5%
- Dimensions: 58mm(L) × 32mm(W) × 84mm(H)
- Mounting type: Direct mounting with ISO 15407-1 standard interface
The 4V32008CI features a reinforced aluminum alloy body with chemical-resistant epoxy coating, designed for high-cycle industrial applications. Its low-hysteresis coil design ensures stable operation under voltage fluctuations (±10% tolerance). The valve incorporates a manual override button for system debugging and includes surge protection circuitry for enhanced durability.
- High-speed packaging machinery (cartoning, labeling)
- Industrial robot end-effector control
- Automated assembly line actuators
- Plastic injection molding machine clamps
- CNC machine tool clamping systems
Installation guidelines:
Maintain ambient humidity below 85% RH. Use locknuts with torque ≤1.5N·m during mounting.
For horizontal installation, ensure exhaust ports face downward to prevent dust ingress.
Lubricate with ISO VG32 turbine oil if operating below -10℃.
| Property | Property Value |
|---|---|
| sku | 4V32008CI |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
