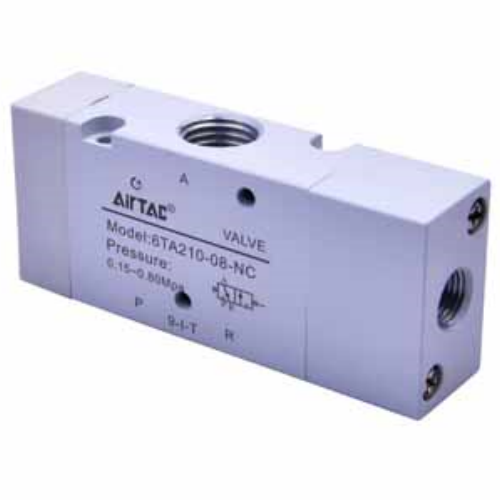

Airtac 6TA Pneumatic Control Valve 6TA21008NC
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Compatible with base-mounted integrated valve manifolds, optimizing spatial efficiency in system layouts.
Classification: Air Control Valve | Brand: Airtac | Series: 6TA
AirTAC 6TA21008NC Pneumatic Control Valve Specifications
- Model: 6TA21008NC
- Type: 3-position, 5-way (double solenoid) with spring return
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.2–1.0 MPa (29–145 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±15%), AC220V (±15%)
- Weight: 320g ±5% (including connectors)
- Dimensions: 72mm(L) × 34mm(W) × 52mm(H)
- Seal material: Heat-resistant NBR (Nitrile) with PTFE coating
- Temperature range: -10℃ to 80℃ (non-freezing environment)
- Power consumption: ≤2.5W (DC), ≤3.5VA (AC)
- Response time: ≤30ms (at 0.5MPa)
- Flow capacity: 850 l/min (Cv=1.2)
- Protection rating: IP67 (dust/water resistant)
- Endurance: ≥10 million cycles
High-flow directional control valve with dual electrical feedback indicators. Features anti-vibration coil design and manual override button for emergency operation. The aluminum alloy body with hard anodized treatment ensures corrosion resistance in humid environments. Requires ISO 8573-1:2010 Class 3.4.2 compressed air (max 50mg/m³ oil content).
- Industrial automation assembly line actuators
- Plastic injection molding machine clamp control
- Automotive tire assembly systems
- Bottle blowing machine air circuit switching
- Textile machinery tension control
Installation note:
Mount using M4 screws with vibration-proof washers. Maintain minimum 15mm clearance
below valve for exhaust airflow. Lubricate using ISO VG32 turbine oil if operating
below -5℃. Perform monthly manual cycling during standby periods.
| Property | Property Value |
|---|---|
| sku | 6TA21008NC |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
