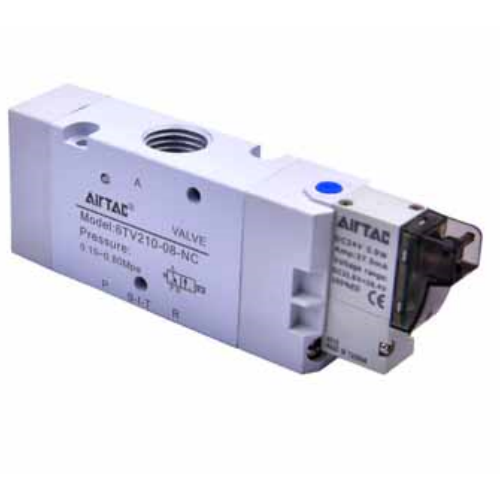

Airtac 6TV Solenoid Valve 6TV110M5NOC200
$29.06
Regular price
$36.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
6TV110M5NOC200
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Plug-in electrical connection design allows horizontal and vertical terminal mounting orientations to be freely interchangeable;
2、Internal exhaust structure collects pilot gas for centralized discharge through R port;
3、Aluminum alloy extruded body with precision-machined internal bore to significantly enhance flow efficiency;

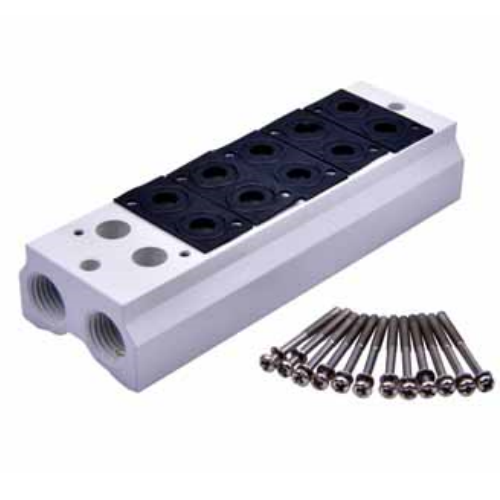

4、Optional threaded connection type for integration with valve manifolds via base mounting, saving installation space.
Category: Solenoid Valves , Brand: AirTAC , Series: 6TV
2、Internal exhaust structure collects pilot gas for centralized discharge through R port;
3、Aluminum alloy extruded body with precision-machined internal bore to significantly enhance flow efficiency;
4、Optional threaded connection type for integration with valve manifolds via base mounting, saving installation space.
Category: Solenoid Valves , Brand: AirTAC , Series: 6TV
AirTAC 6TV110M5NOC200 Solenoid Valve Specifications
- Model: 6TV110M5NOC200
- Type: 5/2-way normally closed (monostable)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 350g ±5% (including coil)
- Dimensions: 80mm(L) × 50mm(W) × 65mm(H)
- Seal material: NBR (Nitrile) standard (Viton optional)
- Temperature range: -20℃ to 70℃ (no freezing)
- Power consumption: ≤1.8W (DC)/≤3.5VA (AC)
- Response time: ≤20ms (at rated pressure)
- Port thread material: Brass (electroplated)
- Protection rating: IP65 (coil)/IP40 (valve body)
- Max flow rate: 850 L/min (ANR)
- Manual override: Built-in push button
High-flow 5-port pneumatic valve with optimized spool structure for stable switching performance. Features dust-resistant plunger design and surge-protected coil, ideal for repetitive cycling applications. Requires ISO 8573-1 Class 3 compressed air (40μm filtration recommended).
Typical Applications:
- Double-acting cylinder control systems
- Automated packaging line actuators
- Textile machinery air circuits
- Automotive assembly jigs
- Food processing pneumatic diverters
Installation note:
Mount in vibration-controlled environments using M5 mounting screws (torque ≤0.5N·m).
Lubricate sliding parts with ISO VG32 turbine oil if used in high-cycle applications (>1M operations/year).
| Property | Property Value |
|---|---|
| sku | 6TV110M5NOC200 |
| Initial Position | Normally Open |
| Port Size | M5 |
| Standard Voltage | AC 110V |
| Type | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
