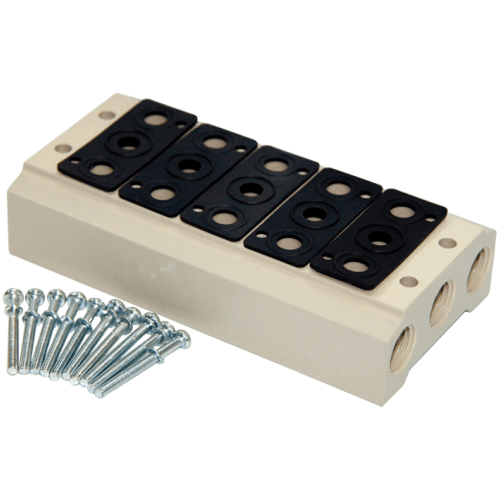

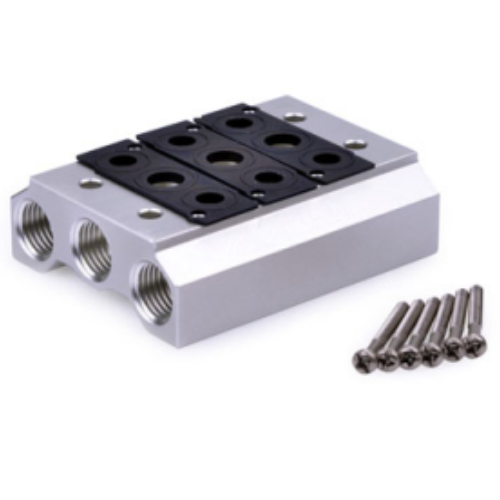

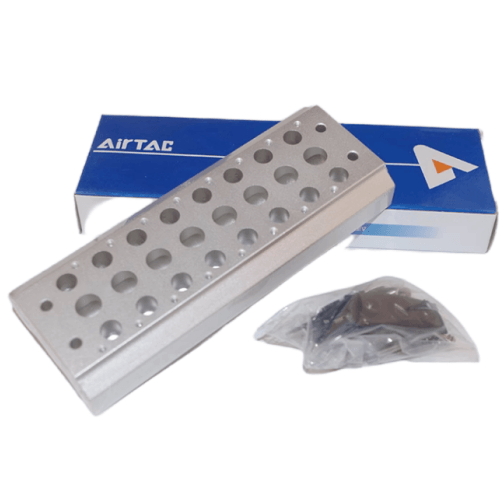

Airtac 7V-F Solenoid Valve Manifold 7V0500M13F
$23.69
Regular price
$31.19
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
7V0500M13F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Enables modular valve manifold integration in common porting direction, achieving space-saving design and cost efficiency:
2、Centralized air inlet/exhaust ports and integrated wiring simplify troubleshooting during maintenance:
3、Flexible modular configuration with expandable design - Allows arbitrary combination and expansion of connected directional control valves quantity;
Category: Solenoid Valve Bases , Brand: AirTAC , Series: 7V-F
Installation protocol:
Torque mounting screws to 0.5-0.6 N·m in crisscross sequence.
Apply silicone-free grease to manifold contact surfaces before stacking.
Maximum 15 base units can be cascaded in series.
2、Centralized air inlet/exhaust ports and integrated wiring simplify troubleshooting during maintenance:
3、Flexible modular configuration with expandable design - Allows arbitrary combination and expansion of connected directional control valves quantity;
Category: Solenoid Valve Bases , Brand: AirTAC , Series: 7V-F
AirTAC 7V-F Series Valve Base 7V0500M13F Technical Specifications
- Model: 7V0500M13F
- Series: 7V-F modular manifold system
- Type: 5-port 2-position (5/2) manifold base
- Port thread: PT1/8 (G1/8 optional)
- Mounting type: ISO 15407-1 standard interface
- Operating pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Max flow rate: 750 L/min (ANR)
- Body material: Reinforced PBT + 30% glass fiber
- Seal material: Nitrile rubber (NBR) with anti-aging additive
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 195g ±5g
- Dimensions: 50mm(W) × 30mm(H) × 68mm(D)
- Surface treatment: Chemical-resistant coating (RAL 7035 light gray)
- Compatibility: Works with 7V210/220/230 series solenoids
Modular valve base designed for high-density pneumatic systems requiring multi-valve configurations. Features dual-row port arrangement for space optimization and integrated silencer grooves. The staggered O-ring design ensures zero-leakage performance even under vibration conditions.
Typical Applications:
- Multi-station pneumatic assembly lines
- Beverage filling machine manifold clusters
- Semiconductor wafer handling robots
- Automotive tire assembly systems
- Textile machinery air circuit distribution
Installation protocol:
Torque mounting screws to 0.5-0.6 N·m in crisscross sequence.
Apply silicone-free grease to manifold contact surfaces before stacking.
Maximum 15 base units can be cascaded in series.
Maintenance:
Clean air supply (40μm filtration) required.
Lubrication not needed for NBR seals.
Annual leakage test recommended for critical systems.
