Airtac ACJ Adjustable Auto-Compensating Hydraulic Shock Absorber ACA3350-1
$105.68
Regular price
$113.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ACA3350-1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

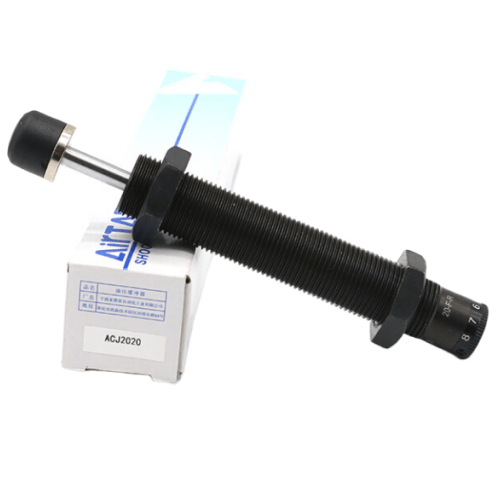

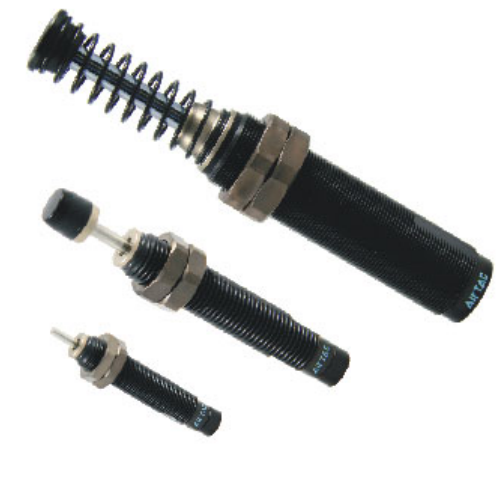

ACJ Adjustable Self-Compensating Hydraulic Shock Absorber
1. Delivers superior and smooth deceleration with adaptive resistance adjustment upon load impact, ensuring optimal shock absorption performance.
2. Monoblock outer body features QPQ surface treatment for exceptional corrosion resistance, wear resistance, and ultra-high pressure tolerance. Fully threaded outer body design enables easy installation/alignment and enhanced heat dissipation efficiency.
3. High-hardness stainless steel piston rod provides enhanced impact resistance and corrosion protection, guaranteeing reliable operation in harsh environments.
4. Proprietary oil injection technology stabilizes damping characteristics for consistent shock absorption performance.
5. Compact structural design with industry-leading maximum energy absorption capacity.
6. Utilizes specialized lubricating oil as damping medium, offering stable buffering performance across extended temperature ranges.
Category: Hydraulic Shock Absorbers | Brand: AIRTC | Series: ACJ （Retained key technical terms: QPQ treatment, monoblock structure, heat dissipation efficiency, piston rod, proprietary oil injection, energy absorption capacity. Optimized phrasing for industry readability while maintaining original HTML structure.）
Installation protocol:
Mount with M16×2.0 mounting bolts (45N·m torque). Perform 10-15 test strokes
before adjustment. For vertical installation, maintain oil port orientation
within ±30° of vertical axis. Relubricate every 500,000 cycles using
AirTAC H-68 buffer oil.
1. Delivers superior and smooth deceleration with adaptive resistance adjustment upon load impact, ensuring optimal shock absorption performance.
2. Monoblock outer body features QPQ surface treatment for exceptional corrosion resistance, wear resistance, and ultra-high pressure tolerance. Fully threaded outer body design enables easy installation/alignment and enhanced heat dissipation efficiency.
3. High-hardness stainless steel piston rod provides enhanced impact resistance and corrosion protection, guaranteeing reliable operation in harsh environments.
4. Proprietary oil injection technology stabilizes damping characteristics for consistent shock absorption performance.
5. Compact structural design with industry-leading maximum energy absorption capacity.
6. Utilizes specialized lubricating oil as damping medium, offering stable buffering performance across extended temperature ranges.
Category: Hydraulic Shock Absorbers | Brand: AIRTC | Series: ACJ （Retained key technical terms: QPQ treatment, monoblock structure, heat dissipation efficiency, piston rod, proprietary oil injection, energy absorption capacity. Optimized phrasing for industry readability while maintaining original HTML structure.）
AirTAC ACJ Auto-Compensating Adjustable Hydraulic Shock Absorber ACA3350-1 Specifications
- Model: ACA3350-1 (ACJ series)
- Type: Adjustable self-compensating oil hydraulic buffer
- Max. absorption energy: 35 N·m/cycle
- Effective stroke: 33 mm
- Piston rod diameter: Ø16 mm
- Max. impact velocity: 3.0 m/s
- Max. operating frequency: 180 cycles/min
- Adjustment mechanism: 360° rotary knob with 20-click torque control
- Operating temperature: -10℃ to +80℃
- Body material: Chrome-plated steel (SCM435)
- Seal material: HNBR with PTFE coating
- Oil type: ISO VG32-68 hydraulic oil
- Mounting orientation: Omnidirectional (vertical/horizontal recommended)
- Weight: 1.85 kg ±2%
- Dimensions: 135mm(L) × 42mm(W) × 42mm(H)
- Protection rating: IP67 (dust/immersion proof)
- Recoil time: ≤1.2 sec (adjustable)
High-precision hydraulic damper featuring automatic viscosity compensation technology that maintains consistent damping force across temperature variations (-10℃~+80℃). The dual-chamber design with precision-ground piston ensures smooth energy conversion, while the tungsten carbide-coated shaft resists abrasive wear in dusty environments.
Typical Applications:
- High-speed robotic end effectors (payload handling)
- CNC turret punch press overtravel protection
- Automated warehouse vertical lift buffers
- Plastic injection molding machine ejection systems
- Steel coil processing line deceleration units
Installation protocol:
Mount with M16×2.0 mounting bolts (45N·m torque). Perform 10-15 test strokes
before adjustment. For vertical installation, maintain oil port orientation
within ±30° of vertical axis. Relubricate every 500,000 cycles using
AirTAC H-68 buffer oil.
Adjustment procedure:
- Rotate knob clockwise to increase damping force (max 35N·m)
- Counter-clockwise rotation reduces force (min 5N·m)
- Each click adjusts 1.5N·m with audible feedback
- Lock adjustment with integrated hex socket (5mm Allen key)
| Property | Property Value |
|---|---|
| sku | ACA3350-1 |
| External Thread | M33 |
| Stroke | <50mm> |
| Bumper Cap Code | Plastic Bumper Cap |
