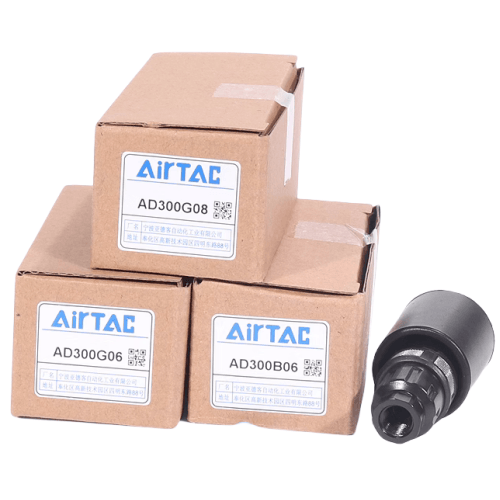

Airtac AD300 Automatic Drain AD300G06-P1
AirTAC AD300G06-P1 Automatic Drain Valve Specifications
- Model: AD300G06-P1
- Type: Timer-controlled automatic drain valve
- Drain method: Intermittent pulse discharge
- Flow capacity: 6 L/min (max)
- Operating pressure: 0.1–1.0 MPa
- Voltage: DC24V ±10%
- Current consumption: 0.4A (max)
- Drain interval: Adjustable 1–60 minutes
- Connection port: G1/4 (ISO228 standard)
- Body material: Aluminum alloy (anodized)
- Seal material: HNBR (heat-resistant variant)
- Temperature range: -5℃ to 80℃
- Protection rating: IP67 (submersible design)
- Weight: 210g ±5g
- Dimensions: 58mm(L) × 42mm(W) × 72mm(H)

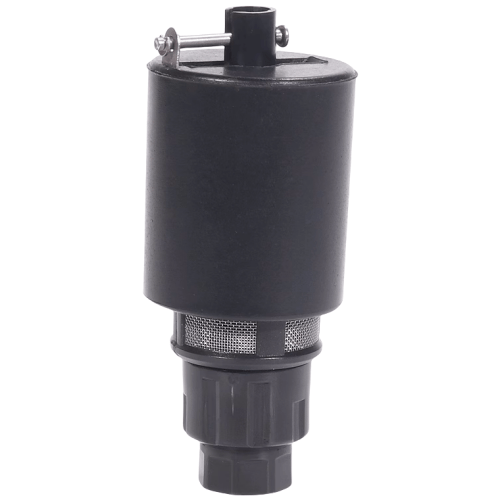

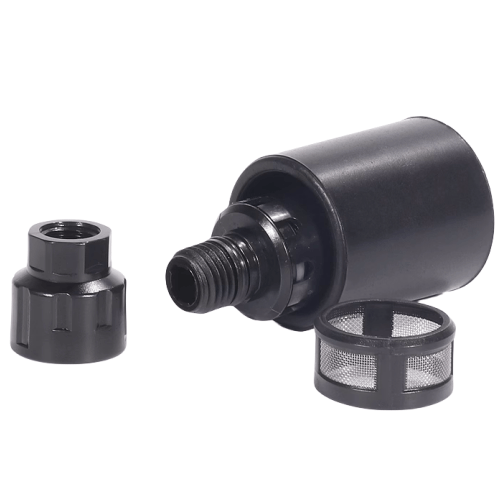

High-efficiency condensate eliminator with intelligent timing control, featuring corrosion-resistant construction and zero air loss during operation. The dual-chamber design enables continuous drainage without pressure drop, with 304 stainless steel screen filter (100μm) for debris protection. Includes LED status indicator and manual test button.
- Compressed air receiver tanks
- Refrigerated air dryers
- CNC machine tool air systems
- Food processing pneumatic lines
- Elevated railway air brake systems
Installation note:
Mount vertically below moisture separator with downward-facing drain port.
Include bypass valve for maintenance. Requires 2.5mm² shielded cable for
electrical connection in high-interference environments.
| Property | Property Value |
|---|---|
| sku | AD300G06-P1 |
