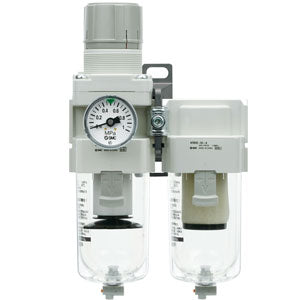

Airtac Air Treatment Combination (Filter, Regulator, Lubricator) AC30-03CG-V-B
$569.41
Regular price
$576.91
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
AC30-03CG-V-B
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
● Enhanced Operational Efficiency
Integrated filter element and bowl assembly enables convenient in-hand filter replacement during maintenance
● Energy-Saving Pressure Regulator Pressure drop reduction: Up to 50% improvement
● Optimized Maintenance Space Maximum 46% space reduction
● Improved Visibility and Safety
Features a transparent bowl protector guard fully enclosing the housing
● Accessories
Partition plate: Y200-A, Y300-A, Y400-A, Y500-A
Bracket-mounted partition plate: Y200T-A, Y300T-A, Y400T-A, Y500T-A
● Customizable Specifications Added [New]
● Visual Monitoring & Safety Enhancement
Transparent guard improves fluid level observation while preventing accidental bowl detachment
● Ergonomic Maintenance
One-piece filter/bowl design simplifies servicing with tool-free disassembly
● Compact Footprint 46% space-saving vs conventional units
● Precision Pressure Regulation
Adjustable range: 0.05-0.85MPa & 0.02-0.2MPa variants
● Gauge Options
Square flush-mount gauge | Round dial gauge | Electronic pressure switch
Category: FRL Combination Units, Brand: AirTAC, Series: AC
Installation note:
Install vertically with arrow marking aligned to airflow direction.
Maintain minimum 50mm clearance below drain port. Lubricator should
be filled with ISO VG32 or equivalent oil (never use detergent oils).
Perform weekly bowl condensation checks in high-humidity environments.
Integrated filter element and bowl assembly enables convenient in-hand filter replacement during maintenance
● Energy-Saving Pressure Regulator Pressure drop reduction: Up to 50% improvement
● Optimized Maintenance Space Maximum 46% space reduction
● Improved Visibility and Safety
Features a transparent bowl protector guard fully enclosing the housing
● Accessories
Partition plate: Y200-A, Y300-A, Y400-A, Y500-A
Bracket-mounted partition plate: Y200T-A, Y300T-A, Y400T-A, Y500T-A
● Customizable Specifications Added [New]
● Visual Monitoring & Safety Enhancement
Transparent guard improves fluid level observation while preventing accidental bowl detachment
● Ergonomic Maintenance
One-piece filter/bowl design simplifies servicing with tool-free disassembly
● Compact Footprint 46% space-saving vs conventional units
● Precision Pressure Regulation
Adjustable range: 0.05-0.85MPa & 0.02-0.2MPa variants
● Gauge Options
Square flush-mount gauge | Round dial gauge | Electronic pressure switch
Category: FRL Combination Units, Brand: AirTAC, Series: AC

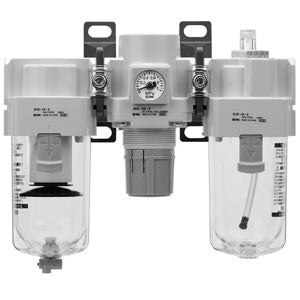

AirTAC AC30-03CG-V-B Triple Unit (FRL) Specifications
- Model: AC30-03CG-V-B
- Type: Filter-Regulator-Lubricator combination
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.05–1.0 MPa
- Max flow capacity: 1,200 L/min
- Filter rating: 40μm (5μm optional with micro-glass element)
- Adjustable pressure range: 0.05–0.85 MPa
- Lubricator oil capacity: 100cm³
- Weight: 680g ±5% (dry)
- Dimensions: 155mm(L) × 82mm(W) × 105mm(H)
- Body material: Die-cast aluminum (anodized finish)
- Seal material: HNBR rubber (-20℃ to 80℃)
- Pressure gauge: 63mm dial, glycerin-filled
- Drain type: Manual float drain
- Protection rating: IP54 (standard)
Modular FRL unit with integrated pressure adjustment lock mechanism and visual oiler drip monitor. Features dual-chamber filtration with water separation efficiency >85% and anti-backflow design. The regulator includes a tamper-proof knob with torque-limited adjustment (max 2N·m).
Typical Applications:
- Pneumatic tool stations in automotive assembly lines
- Textile machinery air preparation systems
- Plastic injection molding machine air supply
- Food processing pneumatic circuits (requires food-grade oil)
- Semiconductor manufacturing cleanroom equipment
Installation note:
Install vertically with arrow marking aligned to airflow direction.
Maintain minimum 50mm clearance below drain port. Lubricator should
be filled with ISO VG32 or equivalent oil (never use detergent oils).
Perform weekly bowl condensation checks in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | AC30-03CG-V-B |
| Port Size | 3/8" |
