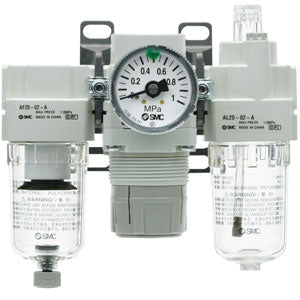

Airtac Air Treatment Combination (Filter, Regulator, Lubricator) AC40B-04-1R-B
$256.64
Regular price
$264.14
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
AC40B-04-1R-B
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
● Enhanced Operational Efficiency
Integrated filter element and bowl assembly enables convenient in-hand filter replacement during maintenance
● Energy-Saving Pressure Regulator Pressure drop reduction: Up to 50% improvement
● Optimized Maintenance Space Maximum 46% space reduction
● Improved Visibility and Safety
Features a transparent bowl protector guard fully enclosing the housing
● Accessories
Partition plate: Y200-A, Y300-A, Y400-A, Y500-A
Bracket-mounted partition plate: Y200T-A, Y300T-A, Y400T-A, Y500T-A
● Customizable Specifications Added [New]
● Visual Monitoring & Safety Enhancement
Transparent guard improves fluid level observation while preventing accidental bowl detachment
● Ergonomic Maintenance
One-piece filter/bowl design simplifies servicing with tool-free disassembly
● Compact Footprint 46% space-saving vs conventional units
● Precision Pressure Regulation
Adjustable range: 0.05-0.85MPa & 0.02-0.2MPa variants
● Gauge Options
Square flush-mount gauge | Round dial gauge | Electronic pressure switch
Category: FRL Combination Units, Brand: AirTAC, Series: AC
Installation note:
Install vertically with arrow marking aligned to airflow direction. Maintain minimum 300mm clearance below lubricator for oil cup maintenance. Use thread sealant on inlet/outlet ports (tapered threads). Replace filter element every 2,000 operational hours.
Integrated filter element and bowl assembly enables convenient in-hand filter replacement during maintenance
● Energy-Saving Pressure Regulator Pressure drop reduction: Up to 50% improvement
● Optimized Maintenance Space Maximum 46% space reduction
● Improved Visibility and Safety
Features a transparent bowl protector guard fully enclosing the housing
● Accessories
Partition plate: Y200-A, Y300-A, Y400-A, Y500-A
Bracket-mounted partition plate: Y200T-A, Y300T-A, Y400T-A, Y500T-A
● Customizable Specifications Added [New]
● Visual Monitoring & Safety Enhancement
Transparent guard improves fluid level observation while preventing accidental bowl detachment
● Ergonomic Maintenance
One-piece filter/bowl design simplifies servicing with tool-free disassembly
● Compact Footprint 46% space-saving vs conventional units
● Precision Pressure Regulation
Adjustable range: 0.05-0.85MPa & 0.02-0.2MPa variants
● Gauge Options
Square flush-mount gauge | Round dial gauge | Electronic pressure switch
Category: FRL Combination Units, Brand: AirTAC, Series: AC

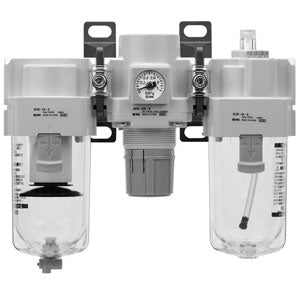

AirTAC AC40B-04-1R-B Triple Unit Specifications
- Model: AC40B-04-1R-B
- Type: Filter-Regulator-Lubricator (FRL) combination unit
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.85 MPa
- Maximum flow: 1,000 L/min (ANR)
- Filter rating: 40μm (5μm optional element available)
- Adjustable pressure range: 0.05–0.85 MPa
- Lubricator oil capacity: 80cc
- Weight: 0.85kg (with oil)
- Dimensions: 160mm(L) × 70mm(W) × 100mm(H)
- Material: Aluminum alloy body, polycarbonate bowl
- Temperature range: -5℃ to 60℃ (non-freezing conditions)
- Drain type: Manual drain with splash guard
- Protection rating: IP42 (bowl protection)
Integrated FRL unit combining 2nd-stage filtration, precision pressure regulation, and adjustable lubrication. Features a visible pressure gauge with shock-resistant dial and tamper-proof adjustment knob. The transparent bowl includes a safety shield meeting ISO 4414 standards.
Typical Applications:
- Pneumatic production line main air preparation
- CNC machine tool pneumatic systems
- Automated assembly line actuator control
- Packaging machinery air supply conditioning
- Industrial robot end-effector support systems
Installation note:
Install vertically with arrow marking aligned to airflow direction. Maintain minimum 300mm clearance below lubricator for oil cup maintenance. Use thread sealant on inlet/outlet ports (tapered threads). Replace filter element every 2,000 operational hours.
| Property | Property Value |
|---|---|
| sku | AC40B-04-1R-B |
| Port Size | 1/2" |
