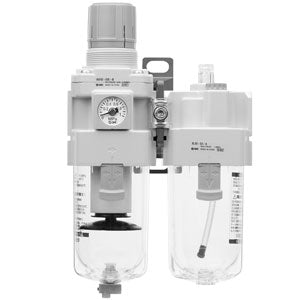

Airtac Air Treatment Combination (Filter, Regulator, Lubricator) AC50B-06-2-B
Integrated filter element and bowl assembly enables convenient in-hand filter replacement during maintenance
● Energy-Saving Pressure Regulator Pressure drop reduction: Up to 50% improvement
● Optimized Maintenance Space Maximum 46% space reduction
● Improved Visibility and Safety
Features a transparent bowl protector guard fully enclosing the housing
● Accessories
Partition plate: Y200-A, Y300-A, Y400-A, Y500-A
Bracket-mounted partition plate: Y200T-A, Y300T-A, Y400T-A, Y500T-A
● Customizable Specifications Added [New]
● Visual Monitoring & Safety Enhancement
Transparent guard improves fluid level observation while preventing accidental bowl detachment
● Ergonomic Maintenance
One-piece filter/bowl design simplifies servicing with tool-free disassembly
● Compact Footprint 46% space-saving vs conventional units
● Precision Pressure Regulation
Adjustable range: 0.05-0.85MPa & 0.02-0.2MPa variants
● Gauge Options
Square flush-mount gauge | Round dial gauge | Electronic pressure switch
Category: FRL Combination Units, Brand: AirTAC, Series: AC
AirTAC AC50B-06-2-B Triple Unit (FRL) Specifications
- Model: AC50B-06-2-B
- Type: Filter-Regulator-Lubricator combination
- Thread size: G1/4 (BSPP)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 1,500 NL/min
- Filter rating: 40μm (5μm optional element)
- Regulator adjustment range: 0.05–0.85 MPa
- Lubricator oil capacity: 180cc
- Weight: 1.25kg (with bracket)
- Dimensions: 215mm(L) × 120mm(W) × 155mm(H)
- Body material: Die-cast aluminum (anodized)
- Seal material: NBR/HNBR
- Temperature range: -20℃ to 60℃ (non-freezing)
- Drain type: Manual/auto drain options
Industrial-grade FRL unit combining particulate filtration, pressure regulation, and pneumatic lubrication in a modular stackable design. Features transparent bowls with metal guards, pressure gauge port, and tool-free bowl removal. Designed for compressed air pretreatment in demanding environments.
- Production line pneumatic tool stations
- CNC machine air preparation systems
- Automated assembly line actuators
- Industrial robotics end-effector control
- Packaging machinery air circuits
Maintenance note:
Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.1MPa.
Lubricator oil level should be maintained between MIN-MAX marks. Drain bowl daily in humid environments.
| Property | Property Value |
|---|---|
| sku | AC50B-06-2-B |
| Port Size | <3/4 inch> |
