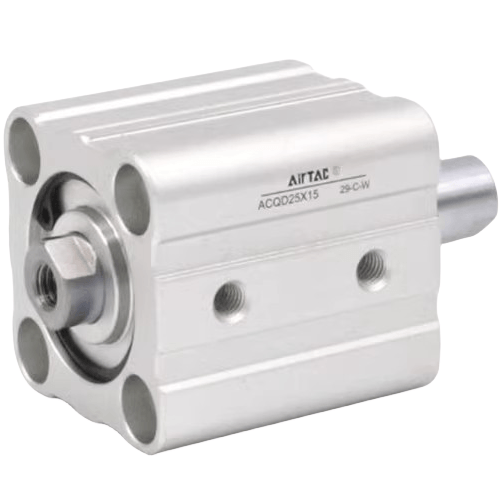

Airtac AirTAC B01-ACQD Special Cylinder B01-ACQD32X80B
AirTAC B01-ACQD32X80B Special Purpose Cylinder Specifications
- Model: B01-ACQD32X80B
- Series: ACQD Compact Cylinder
- Bore size: 32mm
- Stroke: 80mm
- Operating pressure: 0.15–0.8 MPa
- Cushioning: Rubber buffer (adjustable optional)
- Mounting type: Foot-mounted (MF1 style)
- Piston rod material: Stainless steel (SUS304)
- Cylinder tube: Aluminum alloy (hard anodized)
- Seal material: NBR (nitrile rubber)
- Ambient temperature: -20℃ to 80℃
- Port size: M5x0.8 (standard), G1/8 optional
- Weight: 1.8kg (±3%)
- Dimensions: 200mm(L) × 50mm(W) × 50mm(H)
- Rod thread: M10x1.25 (external)
- Max speed: 500mm/s
- ISO standard: 6432 (compact series)
A high-precision compact cylinder with space-saving design, featuring wear-resistant chromium-plated piston rod and anti-rotation mechanism. The dual-cushion design minimizes end-impact noise, while the modular structure allows easy integration with sensors (magnetic switch model: D-A93). Requires ISO VG32 hydraulic oil lubrication for optimal performance.
- PCB handling robots in electronics assembly
- Precision clamping devices for CNC fixtures
- Pharmaceutical blister packaging machines
- Automated test equipment positioning systems
- Food processing conveyor gate controls
Installation note:
Ensure perfect alignment of mounting surfaces (tolerance ≤0.1mm).
For vertical installations, use locking nuts on piston rod threads.
Lubricate every 6 months with AirTAC P-1 grease under high-cycle conditions.
