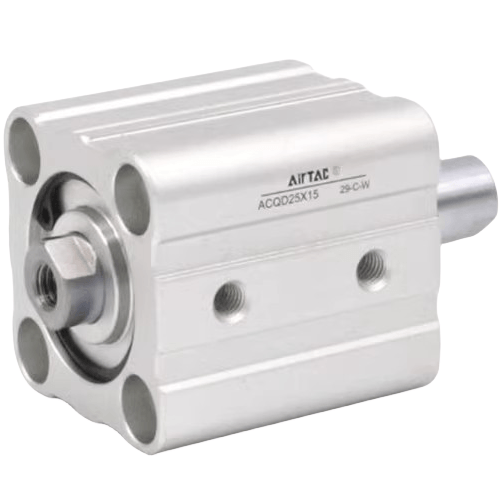

Airtac AirTAC B01-ACQD Special Cylinder B01-ACQD40X60B
AirTAC B01-ACQD40X60B Special Purpose Cylinder Specifications
- Model: B01-ACQD40X60B
- Type: Double-acting compact cylinder with guided piston
- Bore size: 40mm
- Stroke: 60mm (customizable up to 300mm)
- Operating pressure: 0.05–1.0 MPa (7-145 psi)
- Port size: M5x0.8 (standard) or NPT1/8 optional
- Cushioning: Adjustable rubber buffer
- Mounting style: Standard front flange with axial mounting holes
- Temperature range: -20℃ to 80℃
- Seal material: NBR + Polyurethane hybrid seals
- Weight: ~2.8kg (without accessories)
- Dimensions: 200mm(L) × 80mm(W) × 80mm(H) (at full extension)
- Protection rating: IP40 (dust protected)
- Piston rod material: Chrome-plated carbon steel
- Media: Clean compressed air (lubricated or non-lubricated)
High-rigidity guided cylinder with anti-rotation mechanism, designed for precision linear motion in constrained spaces. Features dual piston seals for leak-free operation and tungsten carbide-coated guide rods for extended wear resistance. Optional magnetic piston version (add "-M" suffix) available for position sensing.
- Automated clamping fixtures in CNC machining centers
- Vertical lift mechanisms in packaging lines
- Precision alignment systems for optical component assembly
- Material handling robots in cleanroom environments
- Press-fit operations in automotive part assembly
Installation tip:
For vertical mounting, install rod-end down to prevent contaminant accumulation.
Use locknuts with 25-30 N·m torque on guide rods. Lubricate with ISO VG32 hydraulic oil
if using non-lubricated air supply. Perform monthly rod wiper inspection in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | B01-ACQD40X60B |
