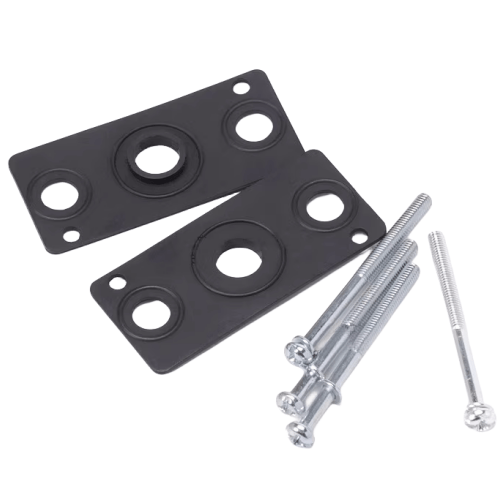

Airtac AirTAC P-4V Repair Kit P-4V320-R1
AirTAC P-4V320-R1 Repair Kit Technical Details
- Repair Kit Code: P-4V320-R1
- Compatible Series: P-4V series pneumatic cylinders (32mm bore)
- Included Components: Piston seals, rod seals, wear bands, O-rings, cushion rings
- Seal Material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature Range: -30℃ to 120℃ (dry air conditions)
- Pressure Range: 0.05–1.2 MPa
- Lubrication Requirement: ISO VG32 turbine oil compatible
- Weight: 220g ±5% (including packaging)
- Package Dimensions: 185mm(L) × 95mm(W) × 35mm(H)
- Storage Life: 8 years in original sealed packaging
- Certification: RoHS 3 compliant
Complete overhaul kit for 32mm bore P-4V series cylinders, containing precision-molded replacement seals designed to restore factory-grade performance. Features wear-resistant PTFE composite seals for high-cycle applications. Kit includes specialized installation tools: nylon pry tool and alignment pin.
- Preventive maintenance in automated assembly lines
- Rehabilitation of cylinders showing air leakage (>0.5L/min)
- Post-contamination events (hydraulic oil mixing/particle ingress)
- Cylinder reburbishment after 500,000+ cycles
Installation protocol:
Disassemble cylinder using torque-controlled tools (4-6Nm max),
clean all metal components with non-petroleum solvent,
lubricate seals with MIL-PRF-6085 grease before assembly.
