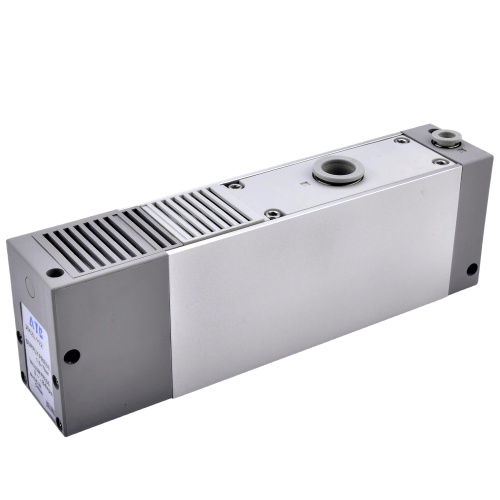

Airtac AirTAC X-KZL Multi-Stage Vacuum Generator X-KZL112
AirTAC X-KZL112 Multi-Stage Vacuum Generator Technical Specifications
- Model: X-KZL112
- Type: 3-stage vacuum generator with integrated silencer
- Vacuum flow rate: 112 L/min @ 0.5 MPa
- Maximum vacuum level: -92 kPa (-690 mmHg)
- Operating pressure range: 0.2–0.7 MPa
- Supply port size: PT1/4 (G1/4 optional)
- Vacuum port size: PT3/8
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Operating temperature: -10℃ to 60℃
- Noise level: ≤68 dB(A)
- Weight: 850 g ±2%
- Dimensions: 125mm(L) × 48mm(W) × 45mm(H)
- Response time: ≤0.3 sec (vacuum establishment)
- Air consumption: 16 NL/min @ 0.5 MPa
- Protection rating: IP40
High-efficiency multi-stage ejector vacuum generator featuring optimized flow channels for rapid vacuum generation. The staggered nozzle design achieves 40% higher suction efficiency than conventional models. Integrated muffler reduces exhaust noise while maintaining flow capacity. Corrosion-resistant construction with precision-machined internal geometries ensures stable vacuum maintenance.
- High-speed pick-and-place systems for PCB components
- Vacuum chuck systems in CNC machining centers
- Medical device assembly with fragile substrates
- Automated packaging lines for lightweight foils
- Semiconductor wafer handling equipment
- Glass panel transfer systems
Installation guidelines:
Maintain horizontal mounting orientation with ±5° tolerance.
Use 5μm filtered dry air supply (pressure dew point ≤3℃).
Install vacuum sensor at least 150mm downstream from generator.
Allow 50mm clearance around exhaust port for heat dissipation.
