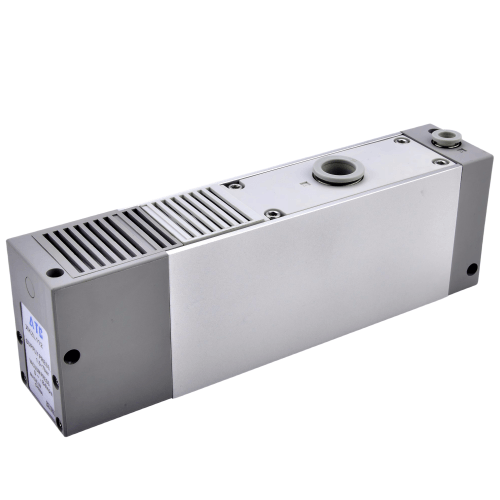

Airtac AirTAC X-KZL Multi-Stage Vacuum Generator X-KZL212
AirTAC X-KZL212 Multi-Stage Vacuum Generator Technical Specifications
- Model: X-KZL212
- Type: 3-stage ejector vacuum generator
- Operating pressure range: 0.3-0.7 MPa
- Max vacuum capacity: -88kPa (at 0.5 MPa supply)
- Air consumption: 180 NL/min @0.5 MPa
- Flow rate: 23 L/min (under 0.5 MPa)
- Port connections: PT1/8 (NPT1/8 optional)
- Vacuum port size: Φ4.5mm
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 60℃
- Noise level: ≤55 dB(A)
- Weight: 310g ±5g
- Dimensions: 120mm(L) × 35mm(W) × 50mm(H)
- Certification: RoHS compliant
- Optional accessories: Built-in silencer (X-KZL212S variant)
High-efficiency multi-stage vacuum generator featuring staggered nozzle design for enhanced suction performance. The optimized flow path geometry reduces turbulent losses by 18% compared to conventional models. Includes integrated vacuum switch mounting slots and anti-clogging particle screen (mesh size: 40μm). Compatible with vacuum cups up to Φ50mm.
- PCB handling systems requiring gentle part manipulation
- Medical device assembly with cleanroom requirements
- High-cycle packaging lines (up to 1,200 operations/hour)
- Automated glass panel transfer systems
- Semiconductor wafer processing equipment
Installation guidelines: Maintain minimum 300mm tubing length between generator and vacuum cup.
For optimal performance, use Class 2.5 dry air with dew point ≤-25℃. Replace filter element every
2,000 operating hours in normal conditions. Avoid mounting in vibration-prone locations -
maximum allowable vibration: 4.9m/s².
| Property | Property Value |
|---|---|
| sku | X-KZL212 |
