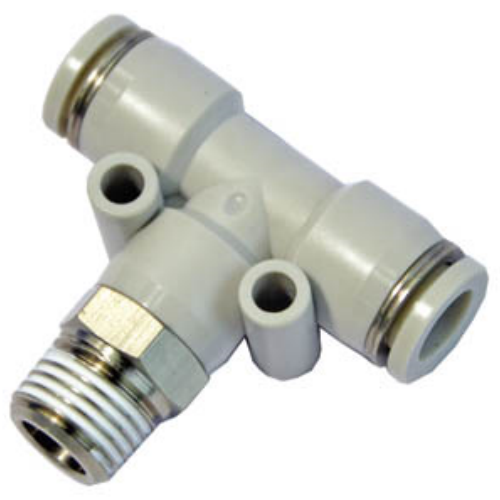

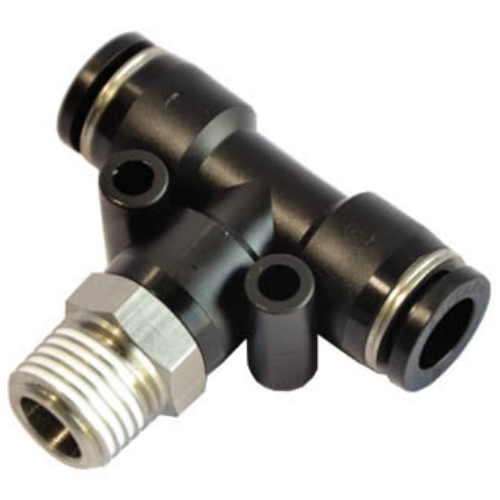

Airtac APB Straight Tee Fitting APB10-03
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB10-03
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps max).
Tighten to 1.2–1.5 N·m torque using backup wrench.
Avoid overtightening which may deform sealing surfaces.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB Series Positive Type Tee Connector APB10-03 Specifications
- Model: APB10-03
- Type: Straight thread tee connector (positive type)
- Thread standard: Metric (M5×0.8) / Optional NPT/PT
- Port configuration: 1 input → 2 output (T-shaped flow path)
- Material: Nickel-plated brass body
- Seal type: Precision-molded NBR O-rings
- Pressure rating: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (dry air)
- Flow capacity: 350 NL/min @ 0.5 MPa
- Leakage rate: ≤3 bubbles/min (ISO 6952 test)
- Weight: 14.5g ±0.3g
- Dimensions: 19.5mm(L) × 19.5mm(W) × 20.3mm(H)
- Surface treatment: Electroless nickel plating (8-12μm)
- Vibration resistance: 10–2000Hz, 20G acceleration
High-density tee connector with triple-seal structure, engineered for stable branching in compact pneumatic systems. Features anti-vibration thread design with 360° sealing surface contact. Compatible with ISO 15407-1 standard manifolds.
Typical Applications:
- Multi-axis pneumatic actuator distribution blocks
- Robotic end-effector air circuit splitting
- CNC machine tool clamping circuits
- Medical device pneumatic control panels
- Semiconductor handling equipment manifolds
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps max).
Tighten to 1.2–1.5 N·m torque using backup wrench.
Avoid overtightening which may deform sealing surfaces.
Fluid compatibility:
Dry air/lubricated air (ISO 8573-1:2010 Class 3.4.2),
Incompatible with ester-based lubricants and halogen gases
| Property | Property Value |
|---|---|
| sku | APB10-03 |
