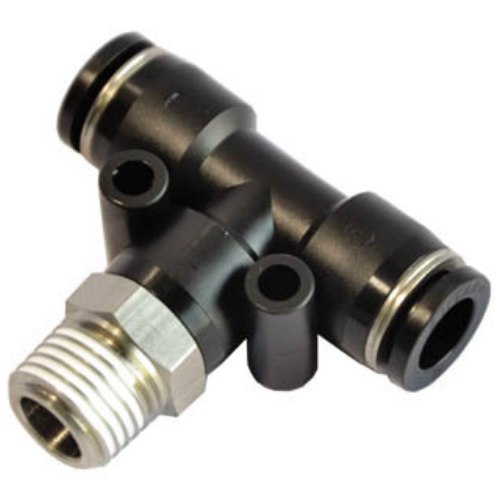

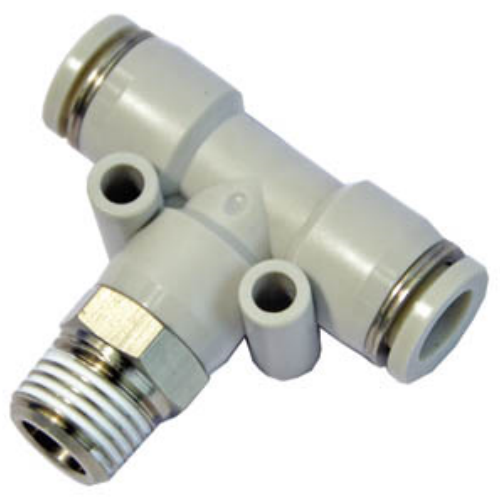

Airtac APB Straight Tee Fitting APB12-02
$5.39
Regular price
$12.89
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APB12-02
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Available in multiple model specifications, widely applicable to various pneumatic systems;
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
Installation note:
Apply thread sealant to male ports only. Tighten with 1.0-1.5 N·m torque using
a backup wrench on the hex base. Avoid overtightening - maximum rotation
after hand-tight should not exceed 180 degrees.
2、Superior flow performance enables equivalent capacity flow matching the tubing inner diameter;
3、Features quick-disconnect push-in tube connections with secure, durable hose retention mechanism;
4、Pre-applied thread sealant and M5 metric thread with integrated sealing washer ensure leak-proof threaded connections;
5、Nickel-plated brass construction enhances corrosion resistance and contamination prevention for expanded application scope.
Category: T-Type Tee Fittings , Brand: AIRTAC , Series: APB
AirTAC APB12-02 Straight Type Tee Fitting Specifications
- Model: APB12-02
- Type: Straight thread tee connector (positive pressure type)
- Material: Brass with nickel plating (corrosion-resistant)
- Thread standard: PT1/8 (BSPP) female threads
- Pressure rating: 0.5-1.5 MPa (72-217 psi)
- Burst pressure: ≥3.0 MPa
- Operating temperature: -5℃ to 80℃
- Seal type: Integral O-ring (NBR rubber)
- Weight: 12g ±0.5g
- Dimensions: 16mm(L) × 16mm(W) × 16mm(H)
- Surface roughness: Ra ≤3.2μm
- Leakage rate: ≤3 bubbles/min under 0.5MPa air pressure
A precision-machined brass tee connector designed for branching pneumatic circuits in compact installations. Features self-sealing parallel threads that prevent leakage during pressure fluctuations. The nickel-plated surface resists oxidation and ensures smooth assembly.
Typical Applications:
- Branch line connections in factory automation equipment
- Modular pneumatic circuit distribution blocks
- Compressed air tool manifolds
- Medical gas delivery systems (non-oxygen service)
- Laboratory instrument air networks
Installation note:
Apply thread sealant to male ports only. Tighten with 1.0-1.5 N·m torque using
a backup wrench on the hex base. Avoid overtightening - maximum rotation
after hand-tight should not exceed 180 degrees.
Compatible Accessories:
- APC series plastic caps (for port protection)
- APM12-01 mounting brackets
- Use with AS1201-02 nylon tubing (OD 4mm)
| Property | Property Value |
|---|---|
| sku | APB12-02 |
