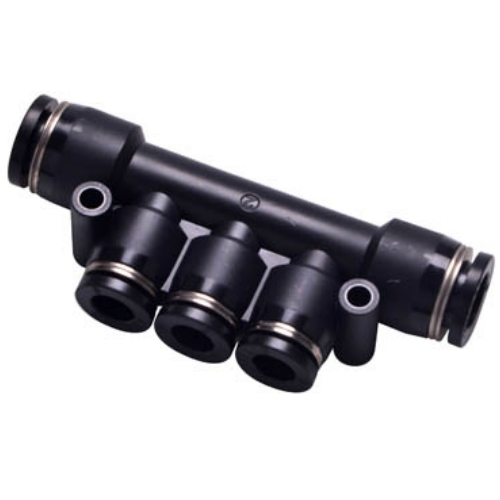

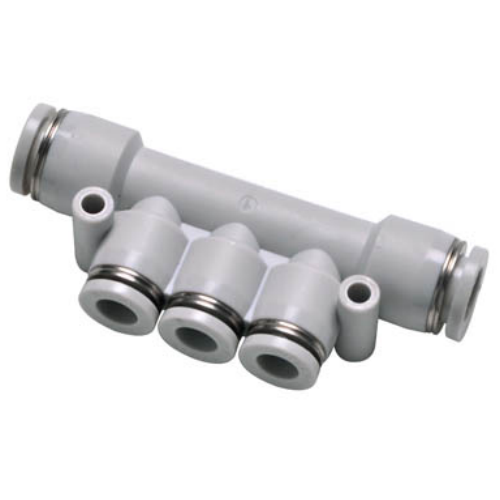

Airtac APK Five-way Fitting APK10
2. Available in multiple specifications with extensive compatibility across pneumatic systems;
3. Features optimized flow geometry allowing full-bore throughput equivalent to connected tubing's inner diameter;
4. Incorporates push-to-connect mechanism for tool-free tubing installation, ensuring secure leak-resistant connections with enhanced durability.
Category: Five-Way Manifold Fittings | Brand: AIRTAC | Series: APK
AirTAC APK10 5-Way Quick Exhaust Fitting Technical Details
- Model Series: APK10 (Standard Compact Series)
- Thread Type: G1/8 (BSPP) / Optional NPT1/8
- Port Configuration: 5 ports (P:1, A:2, B:2)
- Body Material: Nickel-plated brass (C3604)
- Seal Material: NBR (Nitrile) with anti-extrusion design
- Max Operating Pressure: 1.0 MPa (145 psi)
- Proof Pressure: 1.5 MPa
- Burst Pressure: 3.0 MPa
- Temperature Range: -5℃ to 80℃ (with NBR seals)
- Flow Characteristics: CV value 0.12
- Weight: 23g ±1g
- Dimensions: 32mm(L) × 32mm(W) × 24mm(H)
- Surface Finish: Electroless nickel plating (5-8μm)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Compliance: RoHS 2011/65/EU
High-density APK series manifold combines quick exhaust and flow control functions in a palm-sized unit. Features dual O-ring seals with anti-vibration locking teeth, designed for high-cycle pneumatic systems. The 45° angled ports enable space-efficient plumbing in multi-valve clusters.
- Pneumatic cylinder speed control in SMT equipment
- Modular valve islands for packaging machinery
- Robotic end-effector tool changers
- Compressed air distribution in semiconductor handling
- Medical device test bench manifolds
Installation protocol:
Apply 20-30 N·m torque during assembly. Use PTFE tape only on male threads,
keeping 1.5mm distance from port edge. For vertical mounting, orient exhaust
ports downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | APK10 |
