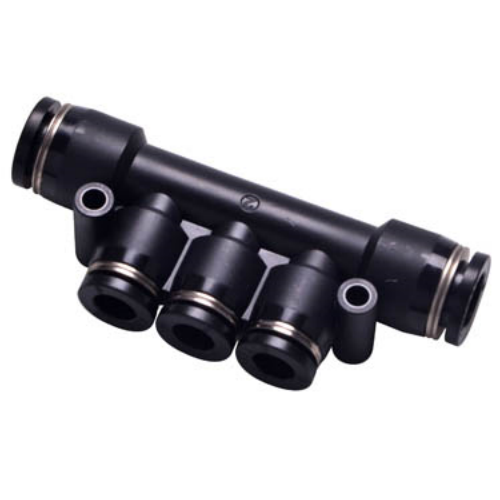

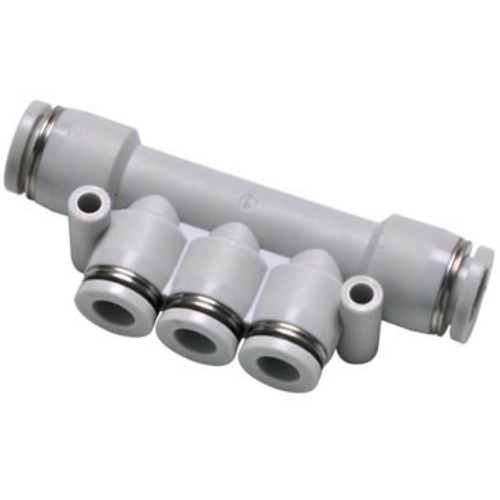

Airtac APKD Threaded 5-Way Fitting APKD10-02
2、Superior flow performance with a capacity matching the inner diameter of pneumatic tubing;
3、Tool-free tube insertion/extraction ensures quick and secure connections, offering reliable and long-lasting tubing integration;
4、Sealant-coated threads and M5 metric threads with integrated sealing washers guarantee leak-proof threaded connections;
5、Nickel-plated brass body provides enhanced corrosion and contamination resistance for extended application versatility.
Category: Threaded 5-Way Fitting , Brand: Airtac , Series: PKD
AirTAC APKD Threaded 5-Way Fitting APKD10-02 Technical Details
- Model: APKD10-02
- Type: Brass 5-port threaded manifold
- Port size: PT1/8 (1/8" BSPP)
- Thread options: PT/NPT/G available (specify when ordering)
- Material: Lead-free brass with nickel plating
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Weight: 28g ±0.5g
- Dimensions: 28mm(L) × 28mm(W) × 28mm(H)
- Surface roughness: Ra ≤1.6μm
- Proof pressure: 1.5 MPa (150% rated pressure)
High-density 5-way flow distribution block with precision-machined internal channels (Ø2.5mm nominal bore). Features corrosion-resistant nickel plating and color-coded port numbers (laser etched). Designed for bi-directional flow control with leak-free O-ring seals. Compatible with ISO 1179-1 standard fittings.
- Pneumatic circuit branching in automation equipment
- Multi-cylinder synchronization systems
- Modular pneumatic test benches
- Robotic end-effector air distribution
- Medical device pneumatic manifolds
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding direction).
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Pressure test recommended after installation.
