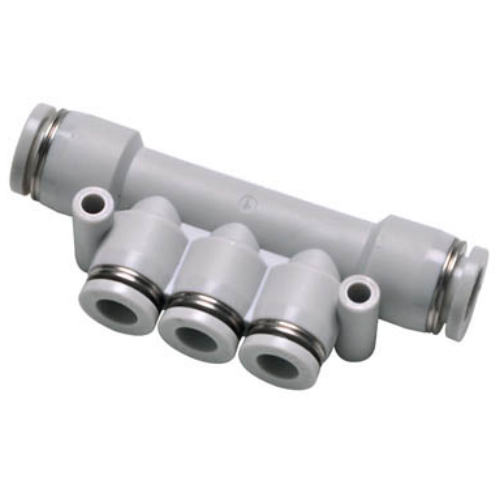

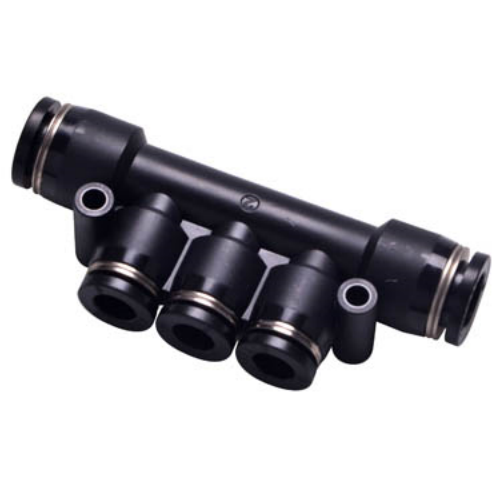

Airtac APKG 5-Port Reducer Adapter APKG10-6
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APKG10-6
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、This series of fittings are copper-free and can be directly applied in copper-restricted environments;
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten with 0.8-1.2N·m torque using crowfoot wrench.
Avoid overtightening - deformation threshold at 3N·m. Perform pressure test at 110% working pressure after installation.
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG10-6 Five-Way Reducing Connector Specifications
- Model: APKG10-6
- Type: Pneumatic five-way reducing connector
- Material: Brass with nickel plating
- Thread standards: M5×0.8 (male) × PT1/8 (female)
- Outer diameter compatibility: 10mm (primary port) × 6mm (secondary ports)
- Max working pressure: 0.8 MPa
- Proof pressure: 1.2 MPa
- Temperature range: -20℃ to 80℃
- Surface roughness: Ra ≤1.6μm
- Leakage rate: ≤3.5×10⁻⁸ Pa·m³/s (helium test)
- Weight: 24.5g ±0.3g
- Dimensions: 35mm(L) × 20mm(W) × 18mm(H)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Precision-machined flow distributor enabling multi-directional pneumatic connections in compact spaces. Features staggered port design preventing tool interference during installation. Nickel coating provides corrosion resistance exceeding 96hrs salt spray test (ASTM B117).
Typical Applications:
- Modular pneumatic circuit branching in automation cells
- Tool changer interfaces on CNC machines
- Medical device pneumatic manifold systems
- Robotic end-effector air supply distribution
- Laboratory analytical instrument gas routing
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten with 0.8-1.2N·m torque using crowfoot wrench.
Avoid overtightening - deformation threshold at 3N·m. Perform pressure test at 110% working pressure after installation.
| Property | Property Value |
|---|---|
| sku | APKG10-6 |
