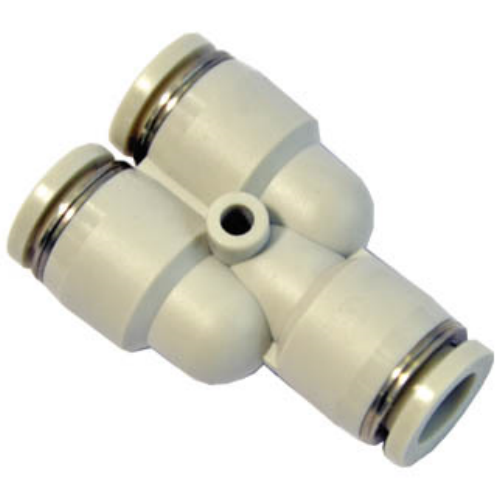

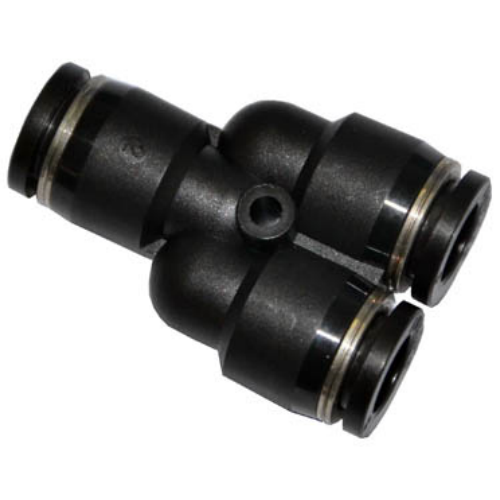

Airtac APY Y-Type Tee Fitting APY10
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Joint APY10 Technical Details
- Model: APY10
- Type: Y-shaped triple union (equal-diameter tee)
- Thread standard: Metric (M5) / Optional NPT/PT/BSPP
- Material: Brass CW617N (Nickel-plated) / Optional stainless steel AISI 303
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -5℃ to 100℃ (with NBR seals)
- Seal material: Standard NBR / Optional FKM/Viton®
- Proof pressure: 1.5 MPa
- Flow coefficient (Cv): 0.15
- Weight: 18.5g ±0.5g (brass version)
- Dimensions: 30mm (L) × 22mm (W) × 16.5mm (H)
- Surface roughness: Ra ≤3.2μm (internal passages)
- Vibration resistance: ≤10Hz @ 2.5mm amplitude
Precision-engineered Y-connector featuring 120° branch angle for optimized flow distribution. The logarithmic spiral internal design reduces turbulent flow by 35% compared to standard tees. Compatible with ISO 15407-1 pneumatic systems, with dual O-ring grooves for leak-proof connections.
- Pneumatic circuit branching in CNC machine tool manifolds
- Vacuum system distribution in semiconductor handling equipment
- Medical gas line splitting in dialysis machines
- Modular pneumatic test bench configurations
- Robotic end-effector multi-tool air supply routing
Mounting protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads (when using non-sealed versions).
Tighten to 1.2-1.6N·m torque. Avoid overtightening - maximum allowable angular deviation
is 15° from hand-tight position.
- AirTAC SDA series compact cylinders
- 4V210-06 solenoid valves
- AC2000 series pressure regulators
- 10μm inline filters (recommended upstream)
| Property | Property Value |
|---|---|
| sku | APY10 |
