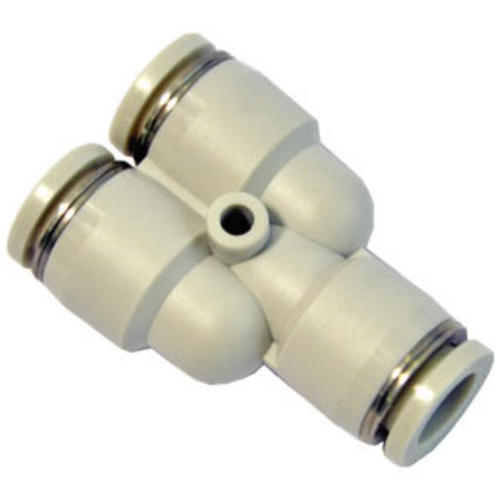

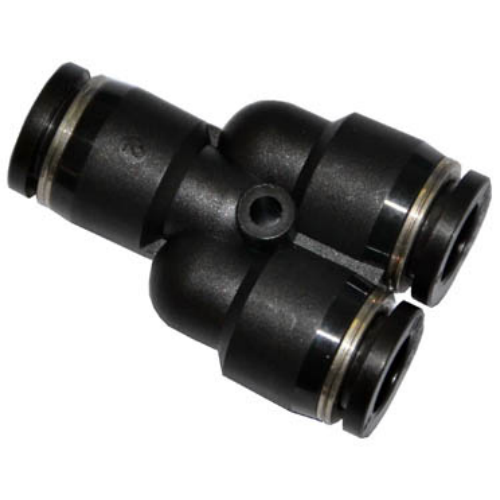

Airtac APY Y-Type Tee Fitting APY4
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APY4
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Copper-free design ensures safe operation in environments where copper materials are prohibited;
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
Installation protocol:
Apply 2-3 drops of pneumatic sealant (Loctite 577 recommended) on threads before assembly.
Tighten with 1.2-1.5 N·m torque using 17mm crowfoot wrench. Avoid overtightening -
maximum 1/4 turn past finger-tight position.
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Fitting APY4 Technical Details
- Model: APY4
- Type: Y-shaped triple union (equal-diameter tee)
- Thread standard: BSPP (G-thread)
- Port size: 1/4" (PT1/4)
- Material: Brass with nickel plating (stainless steel optional)
- Max working pressure: 1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal type: NBR O-ring (FKM available for high-temp)
- Proof pressure: 1.5 MPa
- Surface hardness: ≥HV200
- Weight: 24.5g ±0.5g
- Dimensions: 20mm (L) × 20mm (W) × 25mm (H)
- Flow coefficient (Cv): 0.45
Precision-engineered Y-connector featuring 120° branch angle for optimized flow distribution. The tapered thread design with dual O-ring sealing ensures leak-free connections in multi-directional pneumatic circuits. Mirror-polished internal channels minimize pressure drop.
Ideal for:
- Modular pneumatic manifold systems
- Robotic end-effector air distribution
- CNC machine tool coolant line branching
- Vacuum system parallel circuit setups
- Medical gas delivery networks
Installation protocol:
Apply 2-3 drops of pneumatic sealant (Loctite 577 recommended) on threads before assembly.
Tighten with 1.2-1.5 N·m torque using 17mm crowfoot wrench. Avoid overtightening -
maximum 1/4 turn past finger-tight position.
| Property | Property Value |
|---|---|
| sku | APY4 |
