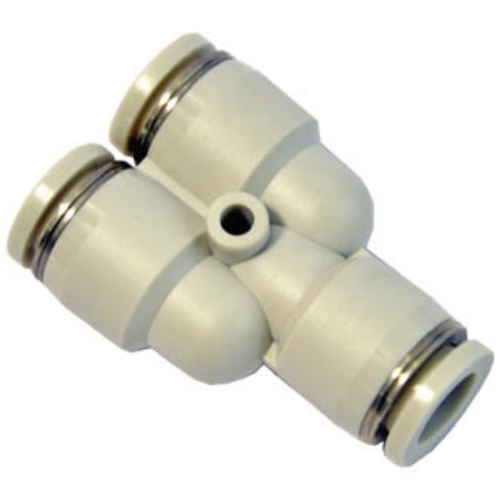

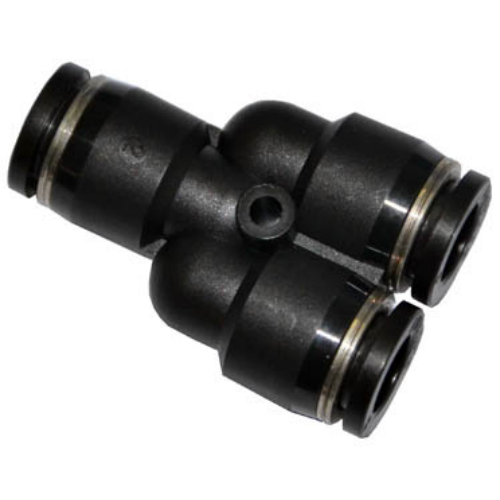

Airtac APY Y-Type Tee Fitting APY6
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
APY6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Copper-free design ensures safe operation in environments where copper materials are prohibited;
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 1.2-1.5N·m torque.
Avoid overtightening which may deform NBR seals. Compatible with Ø4/6mm tubing.
2. Comprehensive model range with multiple specifications accommodates diverse pneumatic system requirements;
3. Optimized flow path architecture delivers unrestricted performance matching full tubing ID capacity;
4. Tool-less push-to-connect mechanism enables rapid installation while maintaining vibration-resistant leakproof connections.
Category: Y-Type Tee Fittings , Brand: AIRTAC , Series: APY
AirTAC APY Series Y-Type Tee Connector APY6 Specifications
- Model: APY6
- Type: Y-shaped triple port connector (equal distribution)
- Material: Brass with nickel plating
- Thread type: PT1/8 (BSPP)
- Max working pressure: 1.5 MPa
- Burst pressure: ≥4.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Flow coefficient (Cv): 0.15
- Weight: 18.5±0.5g
- Dimensions: 25mm(L) × 21mm(W) × 21mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined Y-connector with optimized flow channels for balanced pressure distribution. Features anti-corrosion nickel coating and leak-proof elliptical thread design. Compatible with most pneumatic fluids including dry air and inert gases.
Typical Applications:
- Branch line creation in pneumatic circuits
- Modular pneumatic system assembly
- Air tool manifold connections
- Laboratory gas distribution setups
- Packaging machine air line splitting
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 1.2-1.5N·m torque.
Avoid overtightening which may deform NBR seals. Compatible with Ø4/6mm tubing.
| Property | Property Value |
|---|---|
| sku | APY6 |
