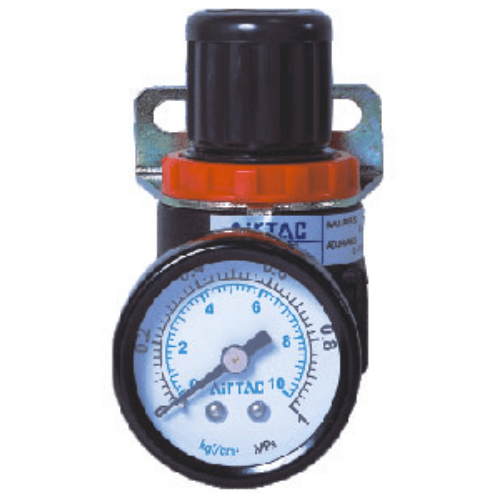

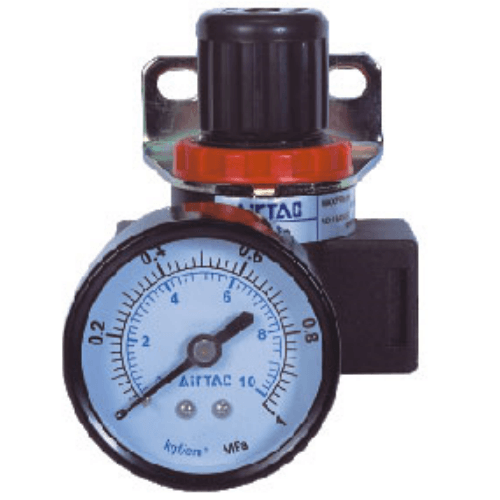

Airtac AR1500/2000 Pressure Regulator AR1500J1
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500J1 Specifications
- Model: AR1500J1 (AR1500/2000 series)
- Type: Precision air pressure regulator with gauge
- Port size: 1/4" NPT (G1/4 optional)
- Pressure regulation range: 0.05-0.85 MPa
- Maximum inlet pressure: 1.5 MPa
- Flow capacity: 4500 NL/min (Cv=3.0)
- Operating medium: Filtered compressed air (ISO8573-1:2010 Class 4)
- Adjustment knob: Lockable rotary control with ±2% set pressure accuracy
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 60℃ (no freezing)
- Weight: 480g ±5%
- Dimensions: 80mm(H) × 50mm(W) × 45mm(D)
- Gauge range: 0-1.0 MPa (standard dial) / 0-150 PSI (optional)
- Relief function: Built-in overflow venting
Industrial-grade pressure regulator featuring tamper-resistant adjustment and dual-scale pressure gauge. The balanced diaphragm design ensures stable output pressure even with fluctuating input pressures. Includes integrated mounting brackets for panel or rail installation. Requires 5μm pre-filtering for optimal performance.
- Pneumatic production line pressure stabilization
- Robotic arm end-effector control systems
- Packaging machinery pressure sequencing
- CNC machine tool pneumatic circuits
- Laboratory test bench setups
- Semiconductor manufacturing equipment
Installation guidelines:
Mount vertically with arrow direction matching airflow. Maintain 100mm
clearance below vent port. Lubricate quarterly with ISO VG32 turbine oil
in high-cycling applications (>5000 cycles/day).
| Property | Property Value |
|---|---|
| sku | AR1500J1 |
| Port Size | PT1/8 |
