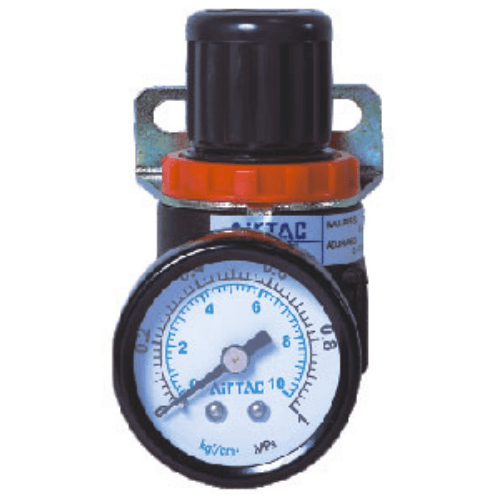

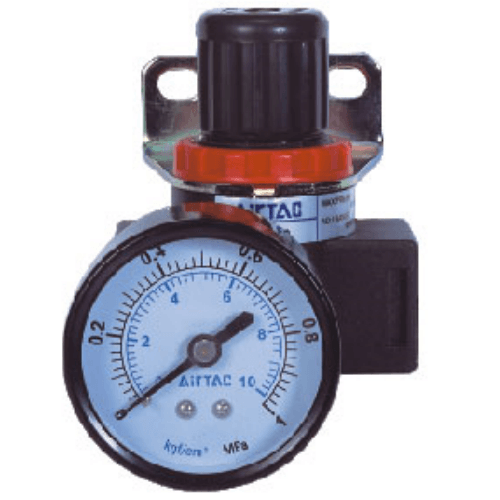

Airtac AR1500/2000 Pressure Regulator AR1500JN
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500JN Precision Pressure Regulator Specifications
- Model Series: AR1500/2000 (AR1500JN variant)
- Type: Filter regulator with pressure gauge
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.05–0.85 MPa
- Maximum flow: 2000 NL/min (AR2000) / 1500 NL/min (AR1500)
- Pressure gauge range: 0–1.0 MPa (0–10 bar)
- Filter element: 40μm sintered stainless steel
- Body material: Die-cast aluminum with epoxy coating
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -5℃ to 60℃ (with anti-freeze measures)
- Weight: 680g ±2% (including gauge)
- Dimensions: 152mm(H) × 80mm(W) × 93mm(D)
- Mounting: Panel mount (ISO 4386 standard)
- Pressure adjustment: Lockable knob with ±2% repeatability
Dual-function unit combining 40μm filtration and precision pressure regulation, featuring a dampened gauge with shock-resistant glass. The dual-chamber design prevents pressure spikes during adjustment. Equipped with a manual pressure release button and tamper-proof adjustment lock. Requires periodic bowl drainage (500ml condensate capacity).
- Pneumatic assembly line pressure stabilization
- Packaging machinery air preparation systems
- Semiconductor manufacturing cleanrooms
- Dental chair pneumatic controls
- Automotive paint booth air supply
Maintenance protocol:
Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.02MPa.
Lubricate adjustment thread with ISO VG32 oil quarterly.
| Property | Property Value |
|---|---|
| sku | AR1500JN |
| Port Size | PT1/8 |
