Description

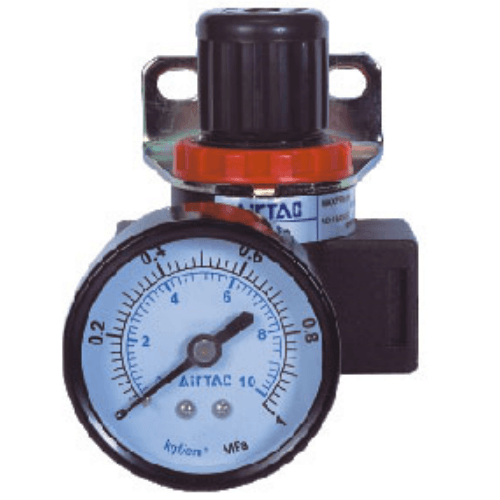

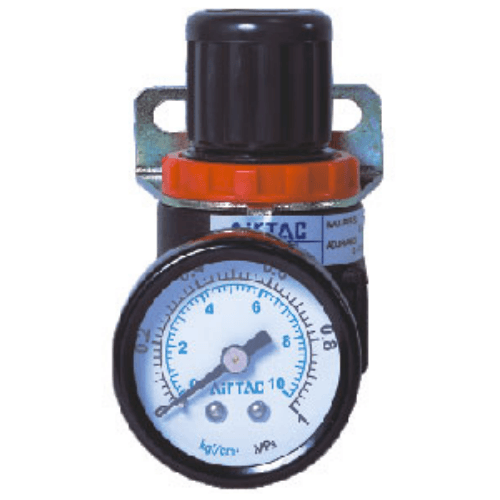

AR1500/2000 Pressure Regulator
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
Installation note:
Install downstream of filter/lubricator (FRL) units. For optimal performance,
maintain ambient temperature below 60℃ and use with 5-50μm filtered air.
Adjust pressure clockwise to increase, counter-clockwise to decrease.
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500LJ1 Specifications
- Model: AR1500LJ1 (AR1500 series)
- Type: Precision pressure regulator with gauge
- Port size: PT1/4 (BSPP thread)
- Operating pressure range: 0.05-0.85 MPa
- Maximum pressure: 1.0 MPa
- Flow capacity: 3000 L/min (ANR)
- Accuracy: ±0.08 MPa
- Hysteresis: ≤0.03 MPa
- Weight: 0.45 kg
- Dimensions: 110mm(H) × 50mm(W) × 65mm(D)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Pressure gauge: 0-1.0 MPa scale (63mm dial)
- Lock mechanism: Push-pull locking adjustment
- Mounting options: Panel mount or direct piping
High-sensitivity pressure regulator with integrated pressure gauge and dust-resistant structure. Features zero-leakage design with T-shaped handle for precise adjustment. The built-in relief valve prevents overpressure conditions. Compatible with ISO 1/4" manifold systems.
Typical Applications:
- Pneumatic cylinder pressure stabilization
- Assembly line tooling pressure control
- Packaging machinery air supply regulation
- Medical equipment gas pressure management
- Semiconductor manufacturing air circuits
Installation note:
Install downstream of filter/lubricator (FRL) units. For optimal performance,
maintain ambient temperature below 60℃ and use with 5-50μm filtered air.
Adjust pressure clockwise to increase, counter-clockwise to decrease.
Maintenance:
Drain condensate weekly via bottom port. Replace NBR seals every 2 years
or 10,000 operating hours. Avoid silicone-based lubricants.
| Property | Property Value |
|---|---|
| sku | AR1500LJ1 |
| Port Size | PT1/8 |
