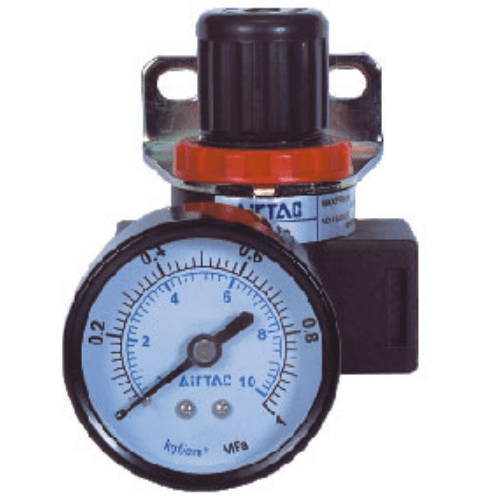

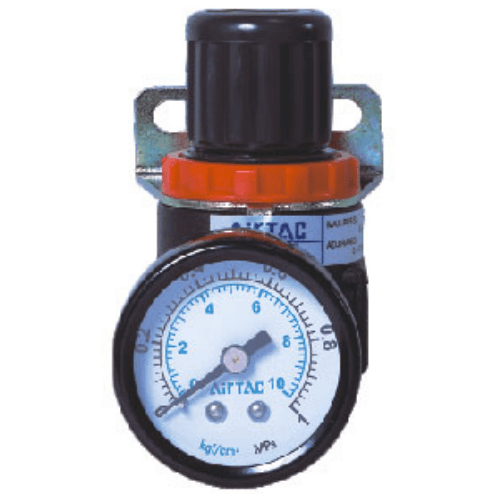

Airtac AR1500/2000 Pressure Regulator AR1500LN
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500LN Pressure Regulator (AR1500/2000 Series) Specifications
- Model: AR1500LN (AR1500/2000 Series)
- Type: Precision air pressure regulator with lock nut
- Port size: 1/4" NPT (G1/4 optional)
- Pressure range: 0.05-0.85 MPa
- Maximum input pressure: 1.5 MPa
- Flow capacity: 3,500 Nl/min (ANR)
- Operating temperature: -5℃ to 80℃
- Hysteresis: ≤0.02 MPa
- Adjustment knob torque: 0.4-0.6 N·m
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: HNBR/NBR (oil-resistant)
- Weight: 0.58 kg ±2%
- Dimensions: 83mm(H) × 50mm(W) × 48mm(D)
- Mounting: Panel mount with M5 screws
- Pressure gauge: Integrated 40mm dial (optional)
High-precision pressure stabilizer featuring dual-chamber diaphragm design for stable output under fluctuating input pressures. The LN variant includes a locking collar to prevent accidental adjustment drift. Optimized for industrial environments with Class 3 particulate filtration compatibility.
- Pneumatic conveyor pressure stabilization
- CNC machine tool air pressure control
- Automotive assembly line tooling
- Packaging machinery pressure management
- Semiconductor manufacturing cleanrooms
Installation note:
Install downstream of filters/lubricators (FRL units). For vertical mounting,
orient adjustment knob upward. Perform initial pressure setting at maximum
system flow rate. Requires monthly diaphragm inspection in high-cycling applications.
| Property | Property Value |
|---|---|
| sku | AR1500LN |
| Port Size | PT1/8 |
