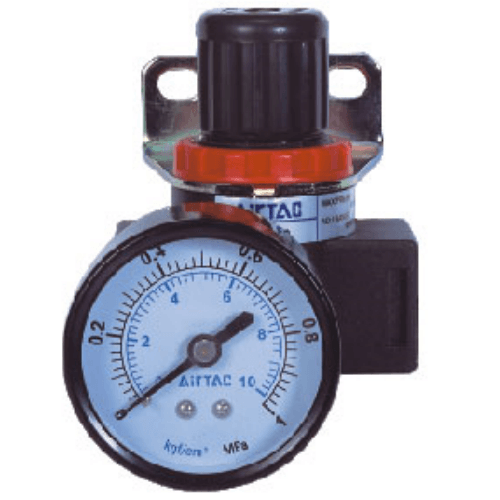

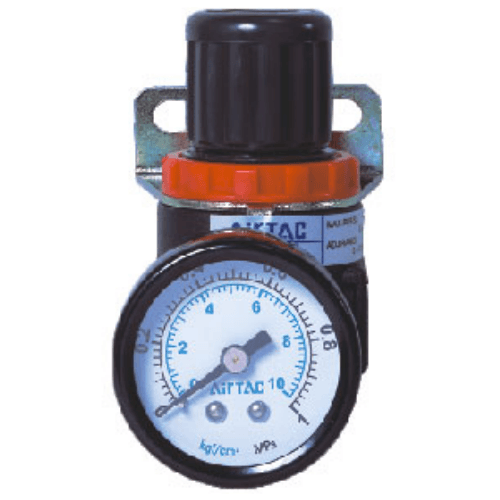

Airtac AR1500/2000 Pressure Regulator AR1500NG
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500NG Technical Specifications
- Model: AR1500NG (AR1500/2000 series)
- Type: Precision air pressure regulator with gauge
- Port size: PT1/4 (G1/4 optional)
- Pressure range: 0.05–0.85 MPa
- Maximum flow rate: 2000 NL/min
- Operating temperature: 5℃ to 60℃ (with 0-80% RH)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Weight: 0.82 kg ±5%
- Dimensions: 100mm(L) × 50mm(W) × 85mm(H)
- Pressure gauge range: 0–1.0 MPa (standard dial)
- Adjustment knob torque: ≤1.5 N·m
- Vibration resistance: ≤49 m/s² (with lock nut engaged)
- Mounting orientation: Horizontal or vertical (gauge up)
High-precision pressure regulation valve featuring dual-chamber design for stable output under fluctuating input pressures. The integrated damped gauge provides vibration-resistant readings, while the oversized adjustment knob allows for precise tuning even with gloved hands. Includes a pressure lock mechanism to prevent accidental setting changes.
- Centralized pneumatic systems in manufacturing lines
- Robotic end-effector pressure control
- Packaging machinery pressure stabilization
- CNC machine tool pneumatic circuits
- Laboratory test bench setups
Installation guidelines:
Install downstream of filter/lubricator units (FRL). For optimal performance, maintain 10x port diameter straight piping upstream.
Engage lock nut after adjustment and perform weekly pressure checks in high-cycle applications.
- Compressed air (ISO 8573-1:2010 Class 2.4.2 required)
- Non-lubricated operation capable (max 0.1mg/m³ oil content)
- Not suitable for corrosive gases or vacuum systems
| Property | Property Value |
|---|---|
| sku | AR1500NG |
| Port Size | PT1/8 |
