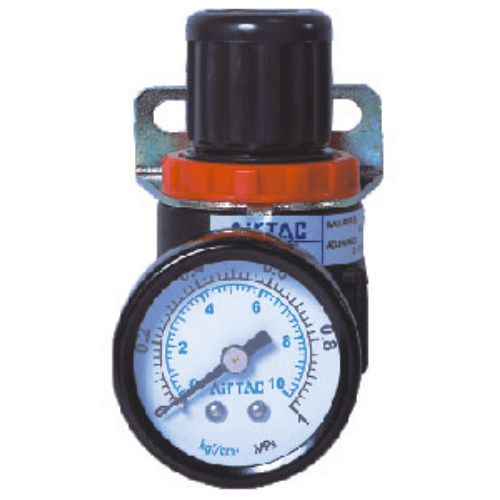

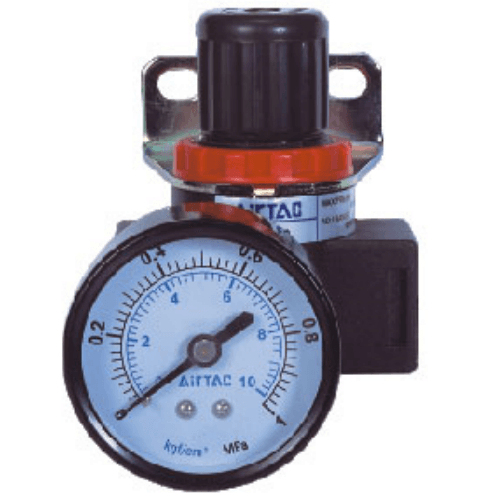

AirTAC AR200-04 AR1500/2000 Pressure Regulator (AR20004)
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR2000 Series Pressure Regulator AR20004 Technical Details
- Model: AR20004 (AR2000 Series)
- Type: Precision air pressure regulator with gauge
- Port size: 1/4" BSPP (G1/4)
- Pressure range: 0.05-0.85 MPa
- Maximum flow: 2,200 L/min (ANR)
- Body material: Aluminum alloy (anodized)
- Seal material: NBR (nitrile rubber)
- Operating temperature: -5℃ to 60℃
- Weight: 650g ±2%
- Dimensions: 78mm(H) × 50mm(W) × 50mm(D)
- Pressure gauge range: 0-1.0 MPa (standard dial)
- Locking mechanism: Spring-loaded adjustment knob with lock ring
- Mounting type: Panel mount (requires 30mm cutout)
- Protection rating: IP40 (dust protected)
High-sensitivity pressure regulator featuring dual-chamber design for stable output under fluctuating input pressures. The integrated damped gauge provides vibration-resistant readings, while the oversized adjustment knob allows precise control even with gloved hands. Includes built-in silencer for exhaust air noise reduction.
- Pneumatic assembly line pressure stabilization
- Industrial robot end-effector control systems
- Packaging machinery air circuit regulation
- CNC machine tool pneumatic clutches
- Semiconductor manufacturing cleanrooms
Installation guidelines:
Install downstream of filter/lubricator (FRL unit). For optimal performance:
- Maintain ambient humidity below 80% RH
- Use 40μm filtration minimum
- Allow 50mm clearance below gauge for visibility
- Lubricate quarterly with ISO VG32 turbine oil
| Property | Property Value |
|---|---|
| sku | AR20004 |
| Port Size | PT1/4 |
