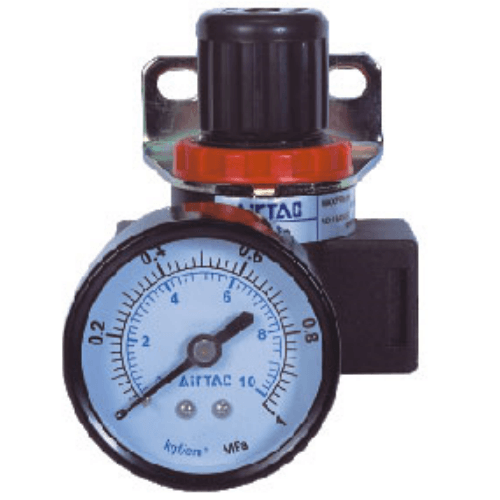

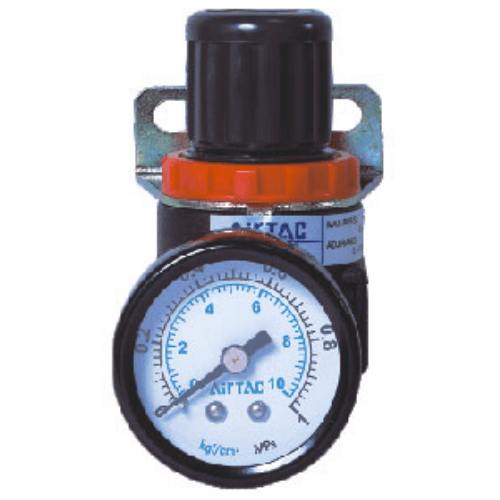

Airtac AR1500/2000 Pressure Regulator AR2000L1
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR2000L1 Precision Pressure Regulator Specifications
- Model Series: AR1500/2000 (AR2000L1 variant)
- Type: Pilot-operated pressure regulator with lockable handle
- Port size: G1/4 (BSPP thread standard)
- Operating pressure range: 0.05-0.85 MPa
- Maximum inlet pressure: 1.5 MPa
- Flow capacity: 3,500 Nl/min (ANR)
- Pressure gauge interface: M5 threaded
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature range: -20℃ to 80℃ (with intermittent peaks up to 120℃)
- Weight: 0.68 kg ±2%
- Dimensions: 105mm(H) × 52mm(W) × 82mm(D) (excluding adjustment knob)
- Mounting orientation: Vertical installation required (arrow mark direction)
- Filter requirement: 5μm particulate filtration recommended upstream
- Lubrication: Oil-free operation compatible (may use ISO VG32 if required)
The AR2000L1 precision pressure regulator features a dual-stage pressure stabilization system with a unique diaphragm balancing mechanism, providing ±2% output pressure stability even under fluctuating flow conditions. Its ergonomic locking knob prevents accidental adjustments and includes a tamper-proof security slot. The integrated silencer reduces exhaust noise to 65dB(A) at 0.5MPa.
- Centralized pneumatic control systems in automotive assembly lines
- Plastic injection molding machine pressure stabilization
- Semiconductor manufacturing gas pressure control
- High-cycle packaging machinery requiring stable actuator pressure
- Laboratory pneumatic tool stations with multiple users
Installation protocol:
Always install downstream of a 40μm filter and upstream of lubricators.
For vertical mounting, maintain 30mm clearance below the exhaust port.
Perform initial calibration at 70% of maximum pressure. Replace HNBR seals
every 5,000 operating hours in high-temperature environments.
| Property | Property Value |
|---|---|
| sku | AR2000L1 |
| Port Size | PT1/4 |
