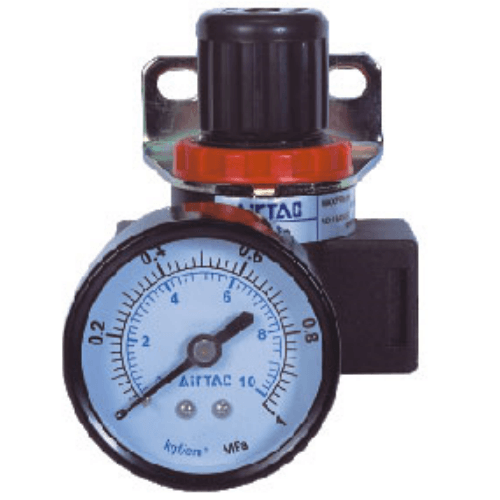

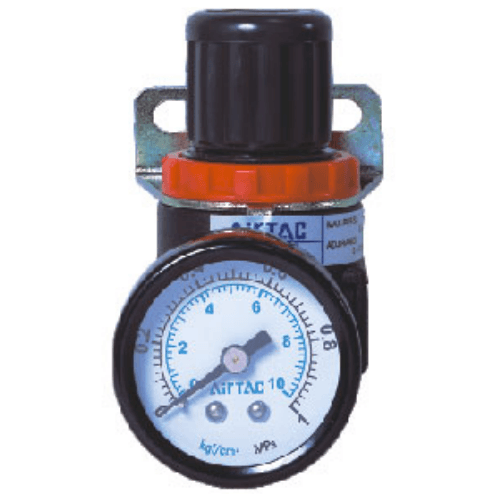

Airtac AR1500/2000 Pressure Regulator AR2000L4
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR2000L4 Precision Pressure Regulator Specifications
- Model Series: AR1500/2000 (AR2000L4 variant)
- Type: Pilot-operated pressure regulator with lockable dial
- Port Size: 1/4" NPT (G1/4 optional)
- Pressure Range: 0.05-0.85 MPa (7-123 PSI)
- Max Inlet Pressure: 1.0 MPa (145 PSI)
- Flow Capacity: 2,500 NL/min (ANR)
- Operating Temperature: -5℃ to 60℃ (23℉ to 140℉)
- Weight: 480g (1.06 lbs) with gauge
- Dimensions: 105mm(W) × 98mm(H) × 48mm(D) (4.13" × 3.86" × 1.89")
- Body Material: Anodized aluminum alloy
- Diaphragm: High-elasticity NBR rubber
- Gauge Range: 0-1.6 MPa (0-232 PSI)
- Pressure Stability: ±0.02 MPa under 0.5 MPa load
- Filter: Built-in 40μm sintered filter
The AR2000L4 features a dual-chamber design with overpressure relief protection, providing precise air pressure control through its stainless steel spring and wear-compensating poppet mechanism. The tool-free adjustment knob includes a tamper-proof lock ring and offers 330° rotation for fine-tuning. Integrated shock-resistant glycerin-filled gauge ensures vibration-proof readings.
- Pneumatic tool pressure stabilization in automotive assembly lines
- Packaging machinery air circuit balancing
- Industrial robot end-effector pressure control
- CNC machine air curtain regulation
- Semiconductor manufacturing cleanroom systems
Installation protocol:
Mount vertically with arrow aligned to airflow direction. Always install downstream of lubricator.
For pulsation-sensitive systems, add 30cm (12") tubing between regulator and actuator.
Perform monthly diaphragm inspection in high-condensation environments.
| Property | Property Value |
|---|---|
| sku | AR2000L4 |
| Port Size | PT1/4 |
