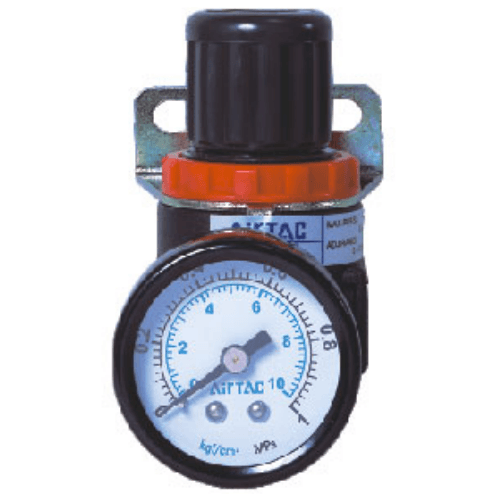

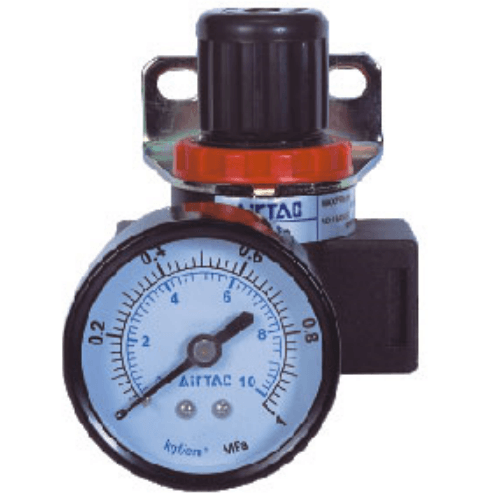

Airtac AR1500/2000 Pressure Regulator AR2000LJ1
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR2000LJ1 Pressure Regulator Specifications
- Model: AR2000LJ1 (AR1500/2000 Series)
- Type: Precision pressure regulator with locking mechanism
- Port size: 1/4" BSPP (G1/4)
- Pressure range: 0.05–0.85 MPa
- Max flow capacity: 3000 NL/min
- Operating temperature: -5℃ to 60℃ (no freeze)
- Body material: Anodized aluminum alloy
- Diaphragm material: NBR rubber
- Pressure gauge: Built-in 40mm dial (0-1.0 MPa scale)
- Weight: 480g ±5%
- Dimensions: 105mm(L) × 60mm(W) × 85mm(H)
- Filter requirement: 5μm or finer upstream
- Vibration resistance: ≤10 Hz / 1.5mm amplitude
Industrial-grade pressure regulator featuring a tamper-proof locking knob and precision pressure compensation. The dual-chamber design ensures stable output under fluctuating input pressures. Includes a moisture drain port and anti-clogging filter screen. Compatible with ISO 1 pneumatic systems.
- Production line pneumatic tool pressure stabilization
- CNC machine air spring systems
- Packaging equipment clamping force control
- Automated assembly line actuator pressure management
- Semiconductor manufacturing cleanroom environments
Installation guidelines:
Mount vertically with arrow aligned to airflow direction.
Allow 50mm clearance below for gauge visibility and knob adjustment.
Pre-lubricate system recommended for high-cycle applications (＞500k operations).
| Property | Property Value |
|---|---|
| sku | AR2000LJ1 |
| Port Size | PT1/4 |
