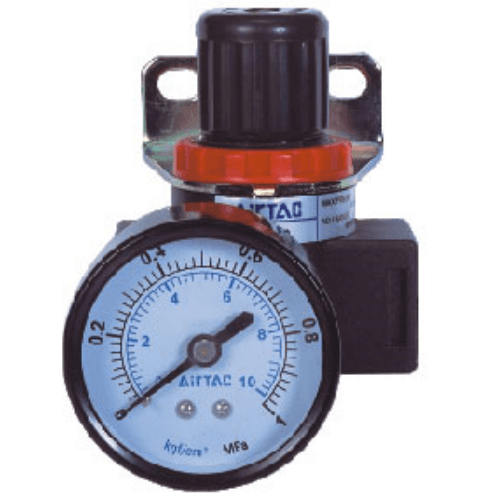

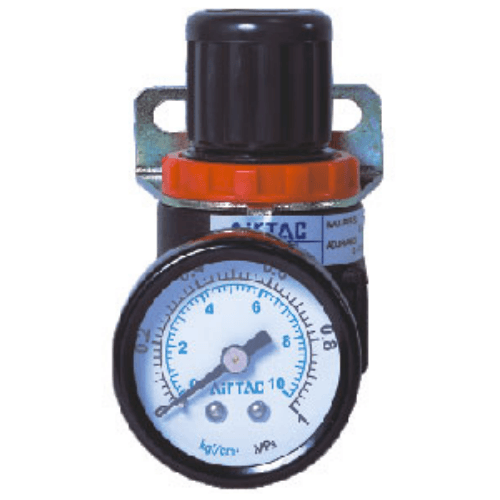

Airtac AR1500/2000 Pressure Regulator AR2000LJN
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR2000LJN Pressure Regulator Specifications
- Model: AR2000LJN (AR1500/2000 Series)
- Type: Precision air pressure regulator with lockable knob
- Port size: 1/2" NPT (G1/2 optional)
- Pressure range: 0.05–0.85 MPa
- Maximum flow rate: 2000 L/min
- Adjustment sensitivity: ±0.02 MPa
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Operating temperature: -5℃ to 80℃
- Mounting orientation: Vertical (recommended ±15° tolerance)
- Weight: 650g ±5%
- Dimensions: 145mm(L) × 85mm(W) × 85mm(H)
- Pressure gauge: Integrated 2" dial (MPa/psi dual scale)
- Relief function: Built-in safety exhaust
The AR2000LJN features a dual-chamber design with dust-resistant diaphragm, providing stable pressure output even under fluctuating air demands. Its chrome-plated spring chamber and precision-machined valve seat ensure ≤0.5% pressure drift during continuous operation. The tool-free adjustment knob includes a push-lock mechanism to prevent accidental setting changes.
- Centralized pneumatic systems in automotive assembly lines
- Plastic injection molding machine air circuits
- Industrial robot end-effector control
- CNC machine tool clamping pressure regulation
- Packaging line pneumatic actuator networks
Installation protocol:
Install downstream of filters/lubricators (FRL units). For optimal performance,
maintain 10x pipe diameter straight run upstream. Drain condensate weekly via
the bottom exhaust port. Use PTFE tape on male threads only.
| Property | Property Value |
|---|---|
| sku | AR2000LJN |
| Port Size | PT1/4 |
