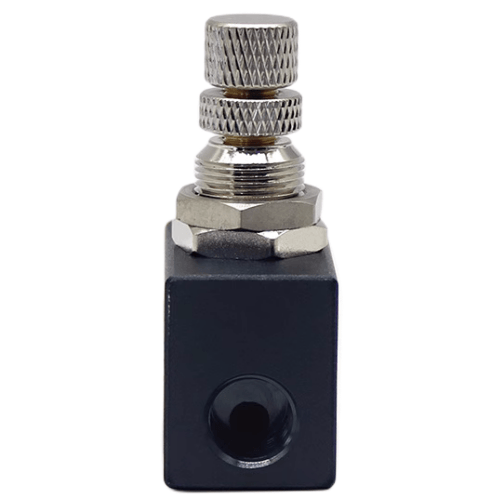

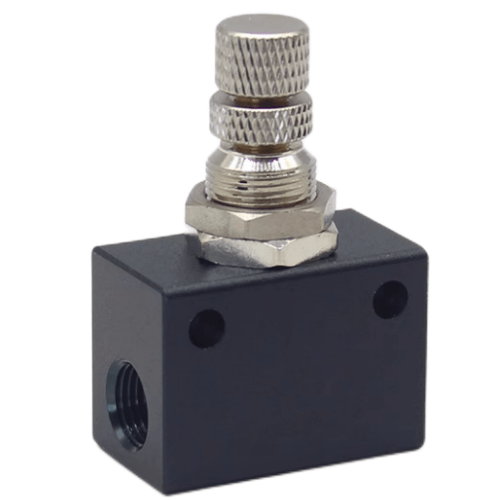

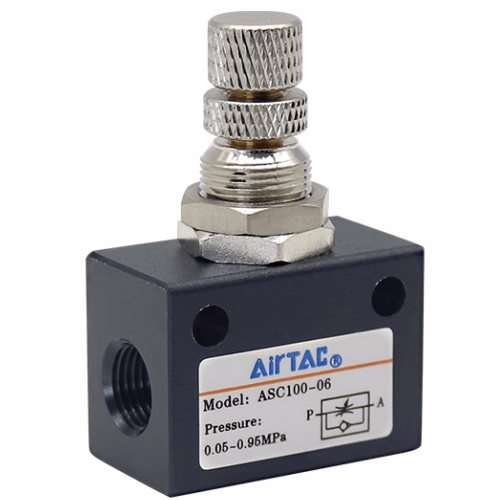

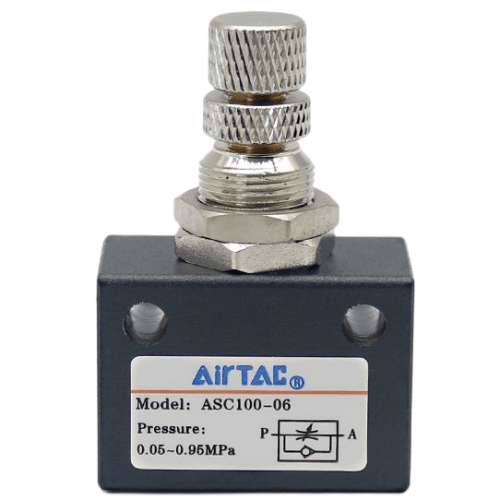

Airtac ASC One-way Throttle Valve ASC-08
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC-08 One-Way Throttle Valve Technical Details
- Model: ASC-08
- Type: Adjustable one-way flow control (needle valve type)
- Port size: PT1/8 (G1/8 optional)
- Thread standard: ISO 228 (BSPP)
- Operating pressure range: 0.05–1.0 MPa
- Max flow capacity: 350 L/min (ANR)
- Flow adjustment range: 5–100% of full scale
- Adjustment mechanism: 360° rotary knob with lock nut
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃
- Weight: 112g ±3g
- Dimensions: 38mm(L) × 28mm(W) × 45mm(H)
- Port orientation: Axial flow design
- Pressure drop: ≤0.03 MPa at max flow
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision throttle valve featuring bi-directional flow control with check valve functionality. The clockwise rotation reduces flow rate while counterclockwise increases it, with integrated locking mechanism to prevent accidental adjustment. Nickel-plated brass internals ensure corrosion resistance in humid environments.
- Cylinder speed regulation in assembly line actuators
- Pneumatic conveyor system flow balancing
- Vacuum generator airflow optimization
- Medical device pneumatic timing controls
- Robotic arm motion damping systems
Installation protocol:
Install with arrow marking aligned to free flow direction. For meter-out control,
position valve between cylinder port and exhaust. Lubricate threads with PTFE tape
during installation. Perform flow calibration under operating pressure.
| Property | Property Value |
|---|---|
| sku | ASC-08 |
| Port | PT1/4 |
