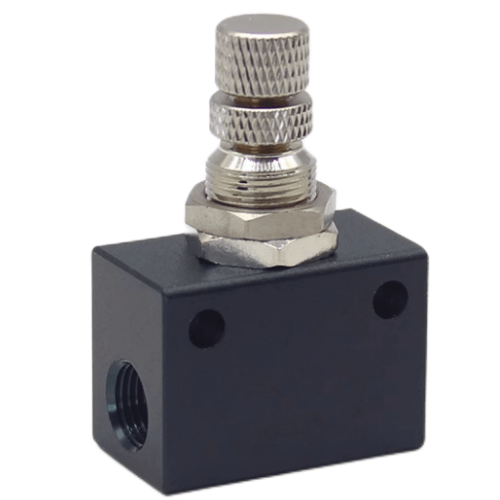

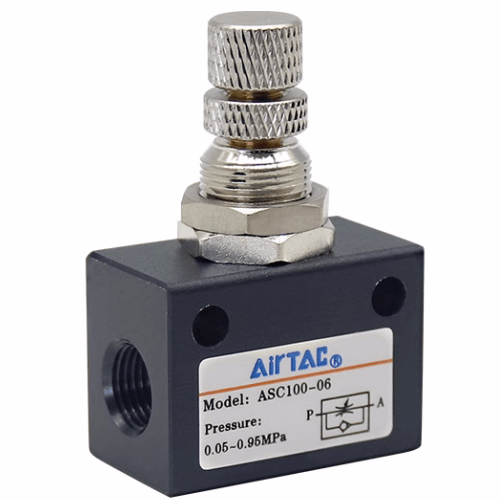

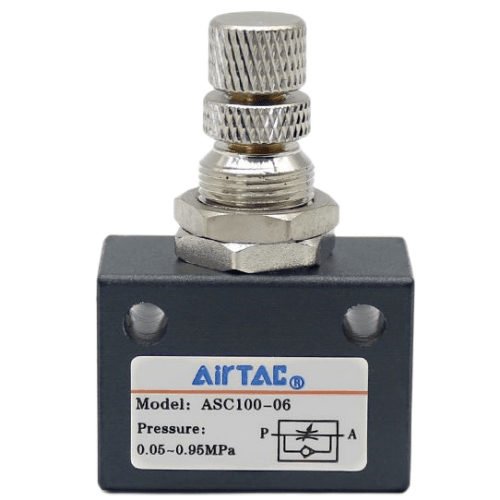

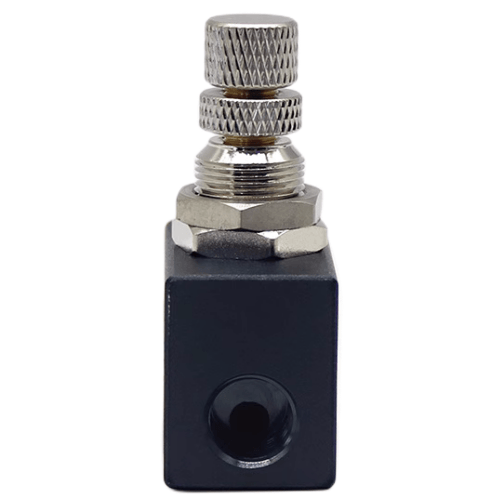

Airtac ASC One-way Throttle Valve ASC-10
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC-10 One-Way Throttle Valve Specifications
- Model: ASC-10
- Type: Adjustable one-way flow control (needle valve structure)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.95 MPa
- Max flow rate: 350 L/min
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Adjustment range: 0.05–5.0 turns (full close to max flow)
- Weight: 85g ±2g
- Dimensions: 38mm(L) × 22mm(W) × 38mm(H)
- Thread engagement depth: 10mm
- Pressure drop: ≤0.02 MPa at max flow
- Repeatability error: ≤5%
Precision-engineered throttle valve with locking adjustment mechanism for stable flow regulation. Features dual-direction flow control with free reverse flow (check valve function) and restricted forward flow adjustment. Corrosion-resistant construction with visual scale markings for repeatable settings.
- Cylinder speed control in automation equipment
- Pneumatic actuator synchronization systems
- Air tool RPM regulation
- Vacuum generator flow adjustment
- Conveyor system braking controls
Installation note:
Install with arrow direction matching desired flow restriction path.
For cylinder control, mount directly on cylinder ports.
Perform final adjustments under system pressure for optimal tuning.
| Property | Property Value |
|---|---|
| sku | ASC-10 |
| Port | PT3/8 |
