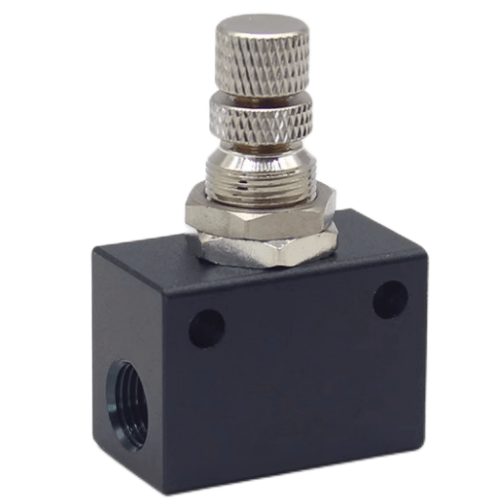

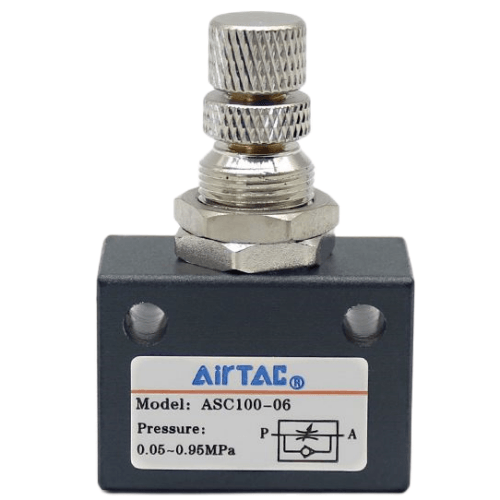

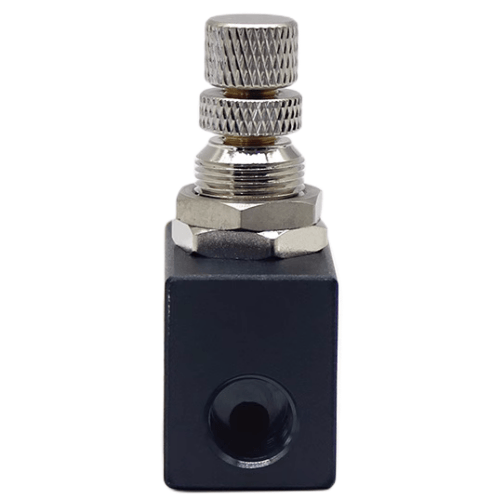

Airtac ASC One-way Throttle Valve ASC100-06
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC One-Way Throttle Valve ASC100-06 Technical Details
- Model: ASC100-06
- Type: Adjustable one-way flow control valve
- Thread standard: G1/8 (BSPP)
- Maximum operating pressure: 1.0 MPa
- Flow adjustment range: 30-600 L/min (ANR)
- Pressure resistance: 1.5 MPa
- Temperature range: -5℃ to 60℃
- Body material: POM (Polyoxymethylene)
- Seal material: NBR (Nitrile Rubber)
- Weight: 85g ±2g
- Dimensions: 45mm(L) × 32mm(W) × 35mm(H)
- Mounting type: Sub-base or direct piping
- Flow direction: Uni-directional with arrow marking
Precision-engineered throttle valve featuring a tamper-proof adjustment knob with click-stop detents for stable flow setting maintenance. The corrosion-resistant POM body incorporates dual O-ring seals for leak-free operation. Designed for speed regulation of pneumatic cylinders with reverse free flow capability.
- Pneumatic cylinder speed regulation in automation lines
- Air tool exhaust silencing systems
- Packaging machine actuator timing control
- Medical equipment pneumatic circuit balancing
- Robotic arm movement damping
Installation guidance:
Install with flow arrow matching actuator extension direction. For optimal performance,
maintain 50mm clearance around adjustment knob and use 5-40μm filtered air.
Lubricate with ISO VG32 turbine oil if air line is un-lubricated.
| Property | Property Value |
|---|---|
| sku | ASC100-06 |
| Port | PT1/8 |
