Airtac ASC One-way Throttle Valve ASC200-08
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC200-08 One-Way Throttle Valve Specifications
- Model: ASC200-08
- Type: Adjustable one-way flow control (with check valve)
- Port size: PT1/8 (G1/8 thread standard)
- Maximum flow rate: 600 NL/min
- Operating pressure range: 0.05–0.9 MPa
- Temperature range: -20℃ to 70℃
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Adjustment range: 1/8 turn minimum to 5 full turns maximum
- Flow adjustment: Clockwise rotation decreases flow
- Weight: 195g ±5g
- Dimensions: 60mm(L) × 30mm(W) × 30mm(H)
- Viscosity range: ≤50 cSt (ISO VG32 equivalent)
- Leakage: ≤3 bubbles/min under 0.5 MPa pressure

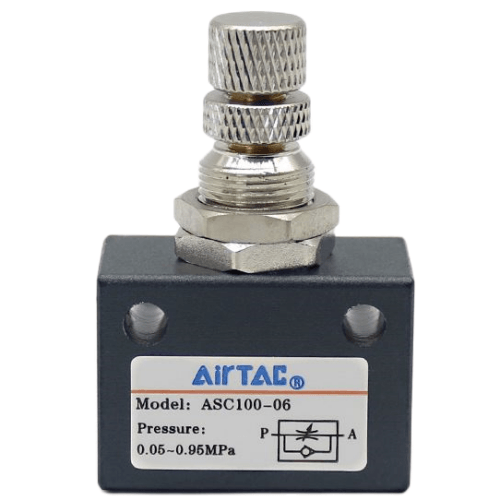

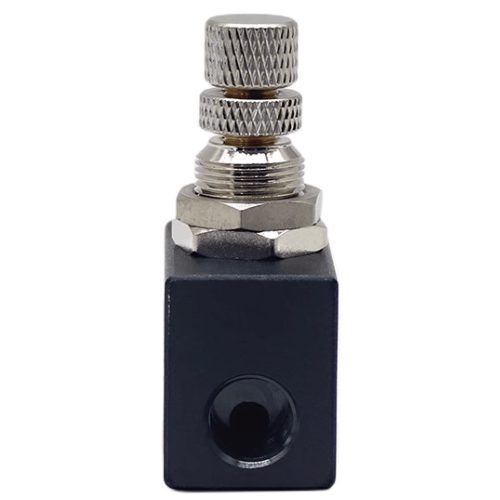

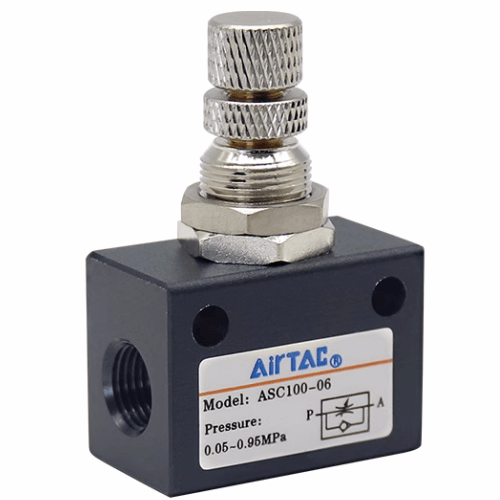

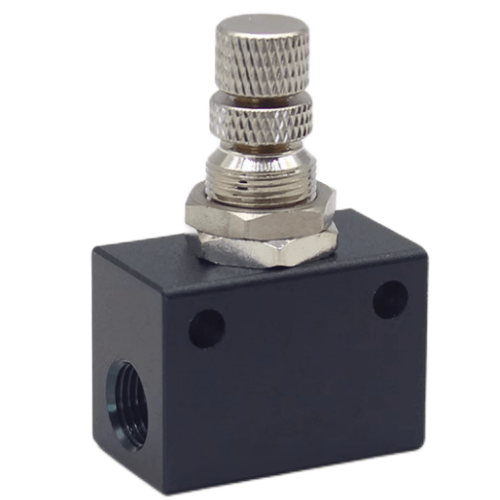

Precision-engineered throttle valve with integrated check valve functionality, featuring micro-flow adjustment capability through a knurled brass knob. The dual-scale indicator (0-5 rotation marks with 0.5 increments) enables repeatable flow settings. Chrome-plated steel spring ensures consistent tension across temperature variations.
- Cylinder speed regulation in automation lines
- Pneumatic gripper force control systems
- Air motor torque limitation setups
- Vacuum generator flow optimization
- Medical bed actuator synchronization
- Packaging machine cushioning control
Installation protocol:
Mount with flow arrow aligned to desired restriction direction.
For cylinder control, install directly at cylinder ports.
Perform initial "full open" commissioning before fine-tuning.
Lubricate threads annually with ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | ASC200-08 |
| Port | PT1/4 |
