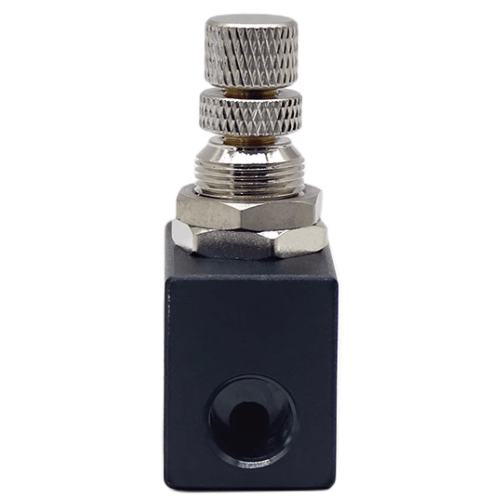

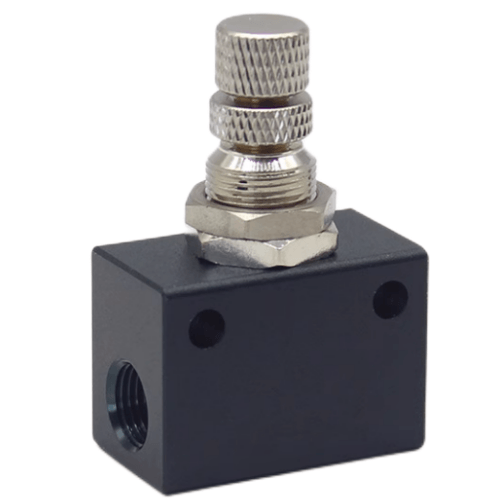

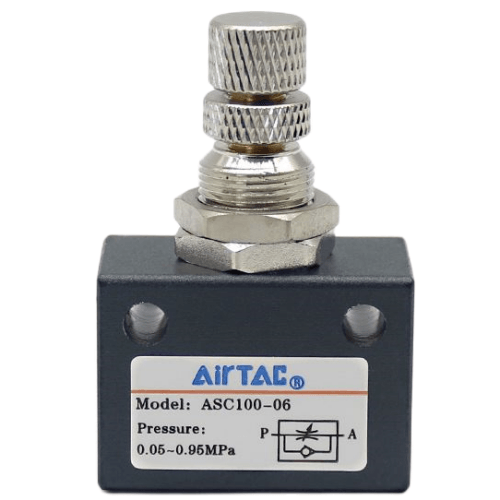

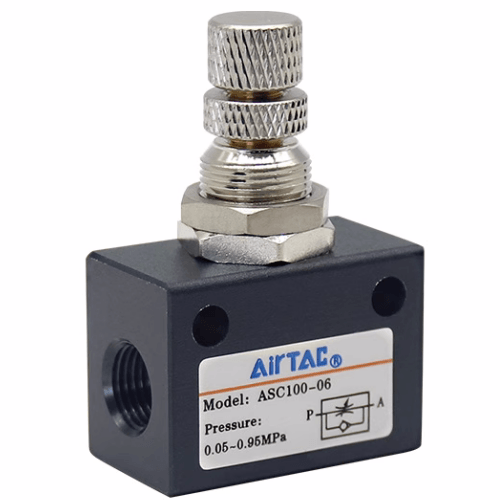

Airtac ASC One-way Throttle Valve ASC300-10
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC300-10 One-Way Throttle Valve Technical Details
- Model: ASC300-10
- Type: Adjustable one-way flow control valve (needle type)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.05–0.7 MPa
- Maximum pressure: 1.0 MPa
- Free flow rate: 750 L/min (at 0.5 MPa)
- Effective section area: 18 mm²
- Adjustment range: 1/8 to full turn (0-100% flow control)
- Body material: Nickel-plated brass
- Seal material: HNBR (hydrogenated nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 118g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 34mm(H)
- Mounting type: Panel mount with M5 thread
- Flow direction: Uni-directional with check valve bypass
The ASC300-10 features precision-machined brass construction with corrosion-resistant nickel plating, designed for stable flow regulation in pneumatic circuits. Its dual-scale graduated knob (0-10 markings with 5° rotation increments) enables micrometer-level adjustment. The integrated check valve allows free reverse flow while restricting forward flow, making it ideal for cylinder speed control applications.
- Cylinder cushioning in automated assembly lines
- Pneumatic actuator speed synchronization
- Vacuum system flow regulation
- Packaging machine clamp force adjustment
- Medical bed pneumatic positioning systems
Installation protocol:
Mount vertically with flow arrow matching system direction. For cylinder control,
install at exhaust port for optimal speed regulation. Lubricate O-ring with
silicone grease (Parker O-Lube 111 recommended) during assembly. Perform initial
calibration by turning knob fully clockwise before gradual adjustment.
| Property | Property Value |
|---|---|
| sku | ASC300-10 |
| Port | PT3/8 |
