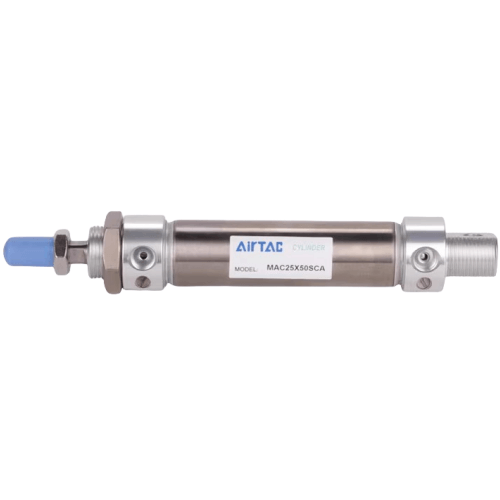

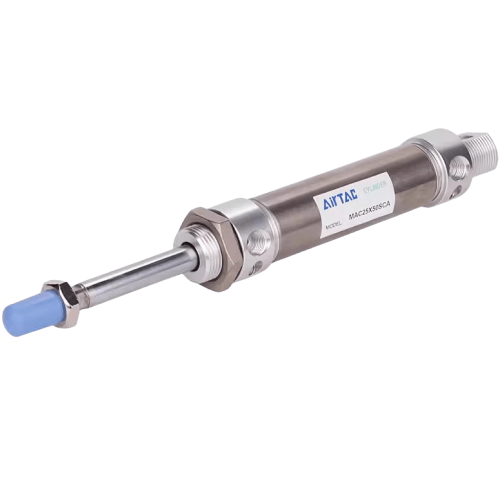

Airtac B01-MAC Series Special Purpose Cylinder B01-MAC25X125SCA
AirTAC B01-MAC25X125SCA Special Purpose Cylinder Specifications
- Model: B01-MAC25X125SCA
- Bore size: 25mm
- Stroke: 125mm
- Operating pressure: 0.05–1.0 MPa
- Cushioning type: Adjustable pneumatic cushion (both ends)
- Mounting style: Double stud mounting (ISO 15552 standard)
- Rod thread: M10×1.25 external thread
- Seal material: Nitrile rubber (NBR) with wear-resistant band
- Operating temperature: -10℃ to 80℃
- Port size: G1/8 (ISO 1179-1)
- Piston speed: 50–800 mm/s
- Protection rating: IP54 (standard), IP67 optional
- Weight: 1.25kg ±3% (without accessories)
- Dimensions: 250mm(L) × 50mm(W) × 50mm(H) (extended length)
High-precision industrial cylinder with chrome-plated piston rod and aluminum alloy barrel, designed for high-cycle applications requiring precise linear motion. Features anti-rotation mechanism and magnetic piston for position sensing compatibility. Optimized for vertical mounting configurations.
- Automated material handling systems
- Electronics assembly press mechanisms
- Packaging machine clamping units
- Textile machinery tension control
- Automotive welding fixture positioning
Installation guidelines:
Maintain 0.5–1mm clearance between rod end and load during alignment.
Lubricate with ISO VG32 hydraulic oil before initial operation.
For horizontal mounting, use additional support brackets (sold separately).
| Property | Property Value |
|---|---|
| sku | B01-MAC25X125SCA |
