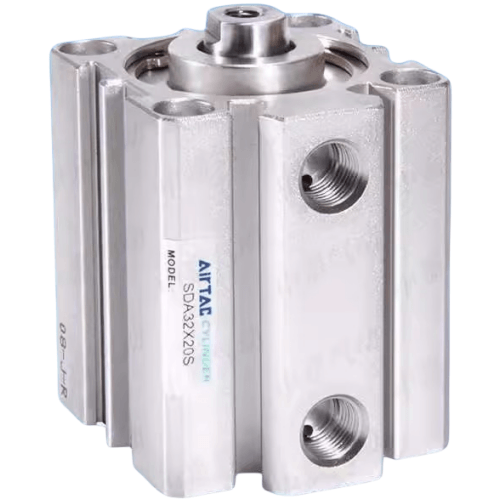

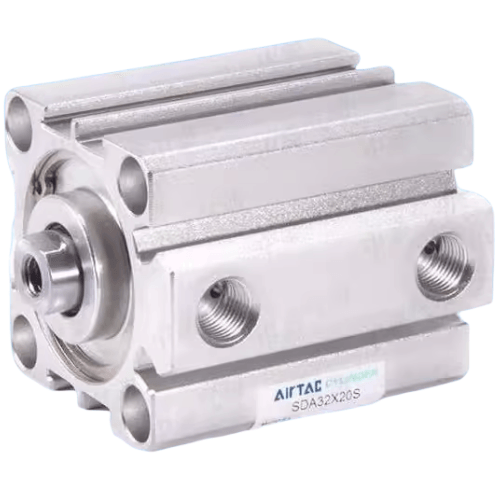

Airtac B01-SDA Dedicated Cylinder B01-SDA40X50S
$47.42
Regular price
$54.92
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B01-SDA40X50S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B01-SDA40X50S Special Purpose Cylinder Specifications
- Model: B01-SDA40X50S
- Type: Single-acting spring return cylinder
- Bore size: 40mm (ISO 6432 standard)
- Stroke: 50mm ±1.5mm
- Operating pressure: 0.15–0.8 MPa
- Piston rod material: Stainless steel SUS304
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Port size: PT1/8 (G1/8 optional)
- Weight: 1.8kg ±5%
- Dimensions: 178mm(L) × 80mm(W) × 80mm(H)
- Cushioning: Adjustable air cushion (both ends)
- Mounting type: Basic (axial foot optional)
- ISO standard: 6432 (VDMA 24562)
High-precision industrial cylinder with chrome-plated piston rod and anti-rotation mechanism. Features dual adjustable cushioning for smooth end-of-stroke deceleration and IP54-rated dust/water resistance. Designed for vertical or horizontal installation in cleanroom environments.
Typical Applications:
- Automated clamping devices in CNC machinery
- Precision positioning in semiconductor handling
- Vertical lifting mechanisms for packaging lines
- Actuation in food-grade production equipment
- Door operation systems in clean environments
Installation note:
Maintain 0.5-1mm alignment tolerance during mounting. Lubricate through air port using ISO VG32 hydraulic oil before initial use. Avoid side loads exceeding 30N.
| Property | Property Value |
|---|---|
| sku | B01-SDA40X50S |
