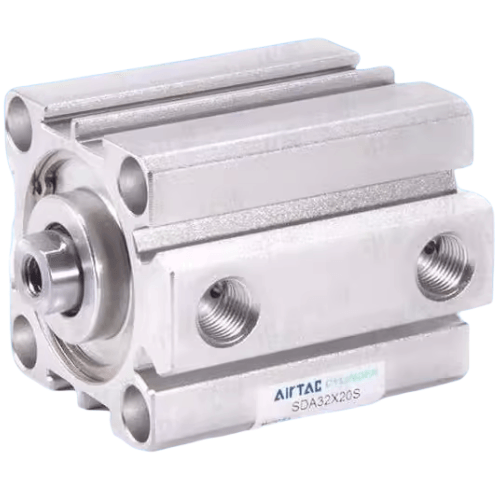

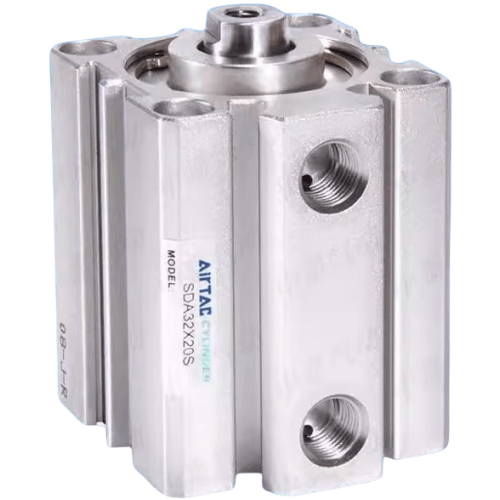

Airtac B01-SDA Dedicated Cylinder B01-SDA50X70
$58.59
Regular price
$66.09
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B01-SDA50X70
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B01-SDA50X70 Special Purpose Cylinder Specifications
- Model: B01-SDA50X70
- Type: Compact double-acting cylinder with auto switch
- Bore size: 50mm
- Stroke: 70mm
- Operating pressure: 0.05–1.0 MPa
- Cushioning: Adjustable elastic cushion (both ends)
- Mounting style: Standard foot + front flange
- Port size: G1/8 (M5 optional)
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Seal material: NBR + Polyurethane
- Weight: 2.3kg ±5%
- Dimensions:
- Extended length: 218mm
- Retracted length: 148mm
- Body width: 70mm
- Height (with bracket): 94mm
- Accessories: Built-in magnetic sensor (PNP/NPN selectable)
- Protection rating: IP67
High-precision industrial cylinder featuring wear-resistant chromium-plated piston rod and aluminum alloy barrel. Integrated shock absorption system minimizes end-impact noise below 75dB. Pre-lubricated for maintenance-free operation with 100km+ service life under standard conditions.
Typical Applications:
- High-speed pick-and-place systems in electronics assembly
- Clamping mechanisms for CNC machining centers
- Material handling in cleanroom environments
- Automated packaging line actuators
- Precision positioning in semiconductor manufacturing
Installation guidelines:
Ensure proper alignment using mounting datum surfaces (tolerance ±0.2mm).
Maintain 0.5mm minimum clearance between magnetic sensor and cylinder body.
Use C-UCPS lubricator when operating in dry air conditions.
| Property | Property Value |
|---|---|
| sku | B01-SDA50X70 |
