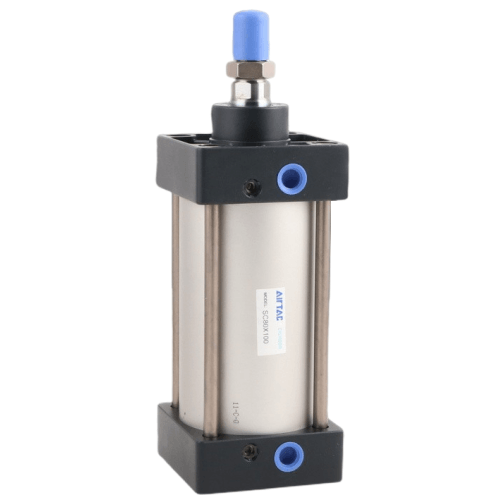

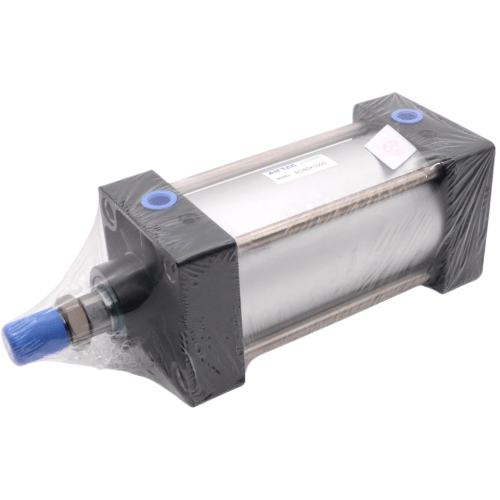

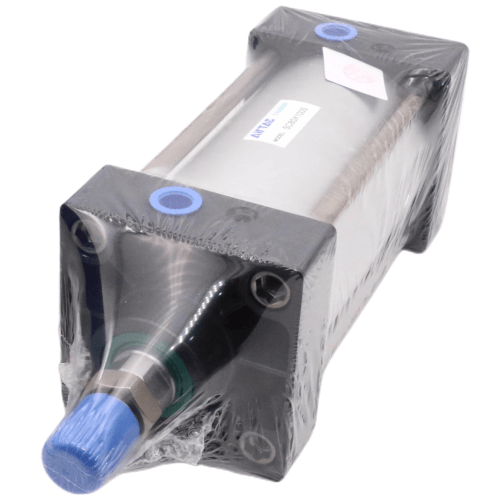

Airtac B06-SC Battery-Dedicated Standard Cylinder B06-SC40X400
AirTAC B06-SC40X400 Battery-Powered Standard Cylinder Specifications
- Series: B06-SC (Battery Operation Series)
- Bore size: 40mm (SC40)
- Stroke: 400mm (adjustable cushion)
- Operating pressure: 0.1–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Battery voltage: 12V DC (Li-ion compatible)
- Battery life: ≥5,000 cycles @ 1Hz operation
- Port size: PT1/4 (G1/4 optional)
- Seal material: NBR + PU hybrid seals
- Rod material: Chrome-plated steel (3μm coating)
- Cushion type: Adjustable air cushion
- Weight: 3.8kg (excluding battery pack)
- Dimensions: 598mm(L) × 58mm(W) × 58mm(H) (full extension)
- Protection rating: IP54 (standard), IP67 (optional)
- Mounting: ISO 15552 standard
Self-contained pneumatic actuator with integrated battery management system, designed for mobile automation applications. Features low-friction guides with wear-resistant scrapers, and an emergency manual override. Includes built-in pressure sensors for stroke-end detection (0.5V–4.5V analog output).
- Lithium battery cell stacking machines
- AGV material handling clamp systems
- Portable welding equipment actuators
- Solar panel cleaning robot arms
- Automotive battery pack assembly lines
Installation note:
Requires 15-minute pre-charge before first use. Lubricate through M5x0.8 grease nipple every 500km of cumulative stroke travel. Avoid continuous side load exceeding 15N.
| Property | Property Value |
|---|---|
| sku | B06-SC40X400 |
